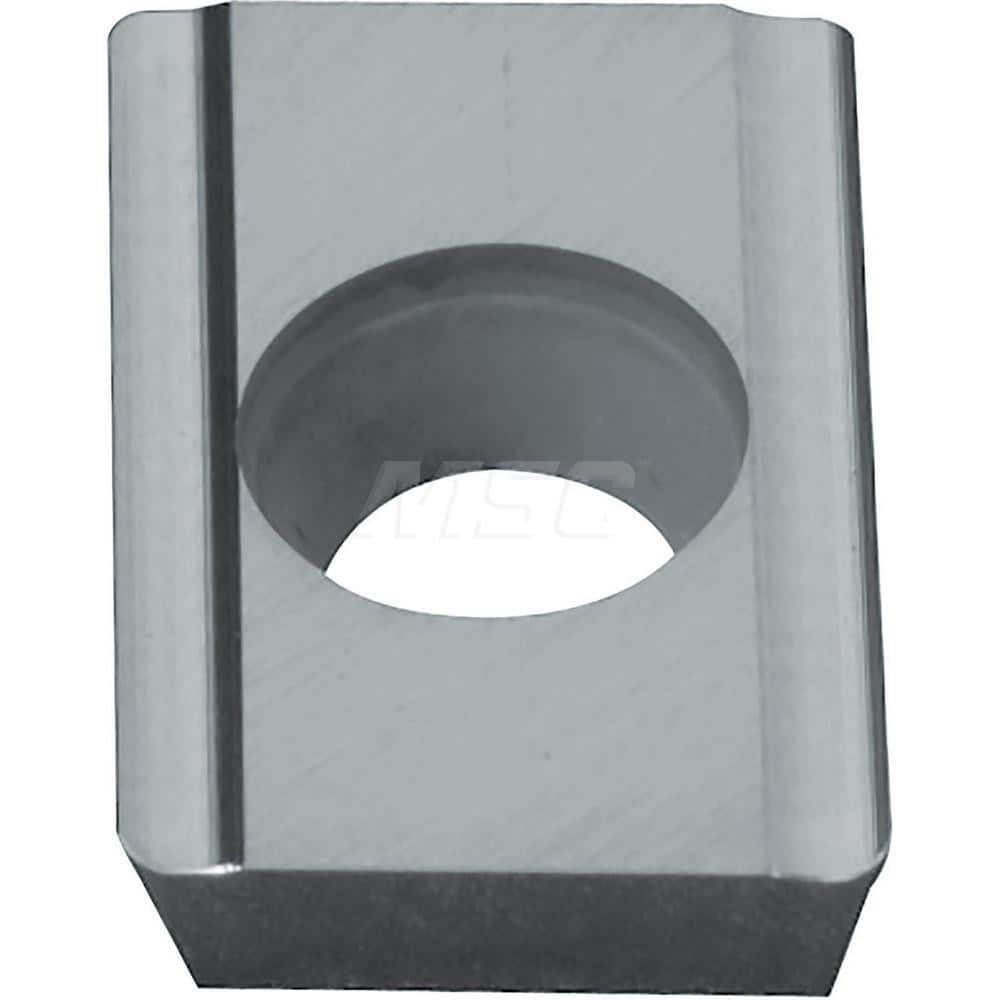

Kyocera NDCT 831RB TN100M Grade Uncoated Cermet, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Finishing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel
Item #: 18257519
Brand: Kyocera
Model #: TSP89016
Product Specifications
| Insert Style | NDCT |
| Insert Size | 831 |
| Insert Material | Cermet |
| Width (Inch) | 1/4 |
| Manufacturer Grade | TN100M |
| Inscribed Circle (Inch) | 1/4 |
| Thickness Range (Decimal Inch) | 0.0000 to 0.1000 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Rake | Positive |
| Ansi Code | NDCT831RBTN100M |
| Iso Code | NDCT831RBTN100M |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | NDCT831RBTN100M |
| Cutter Series Compatibility | CEM |
| Chip Breaker | B |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating/Finish | TiCN; NbC |
| Thickness (Decimal Inch - 4 Decimals) | 0.0937 |
| Length (Decimal Inch - 4 Decimals) | 0.3740 |
