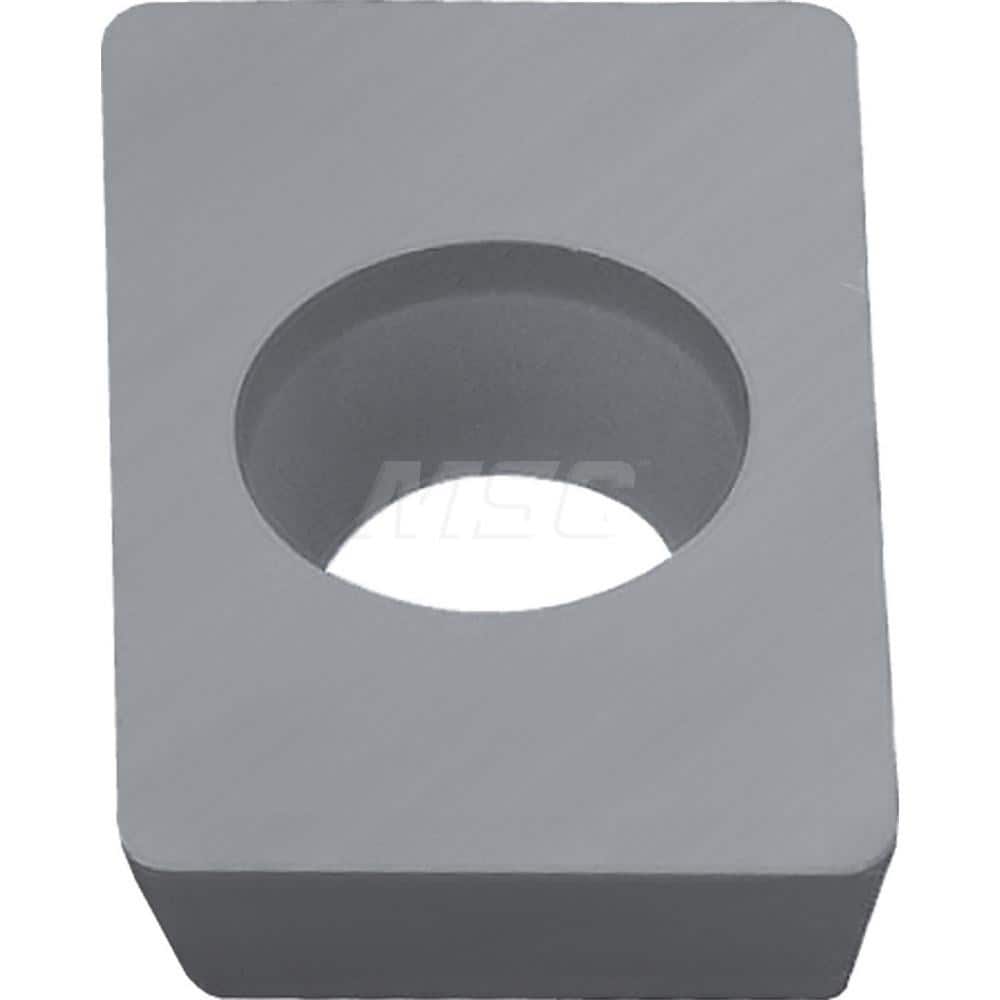

Kyocera NDCW 322FRX KW10 Grade Uncoated Carbide, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (N) Non-Ferrous Metals and (K) Gray Cast Iron, (S) Titanium Alloy
Item #: 18256404
Brand: Kyocera
Model #: TWE00890
Product Specifications
| Insert Style | NDCW |
| Insert Size | 322 |
| Insert Material | Solid Carbide |
| Width (Inch) | 3/8 |
| Manufacturer Grade | KW10 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Rake | Positive |
| Ansi Code | NDCW322FRXKW10 |
| Iso Code | NDCW150308FRX |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | NDCW322FRXKW10 |
| Cutter Series Compatibility | CEM; DMC |
| Chip Breaker | FRX |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating/Finish | WC/Co |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Length (Decimal Inch - 4 Decimals) | 0.3750 |
