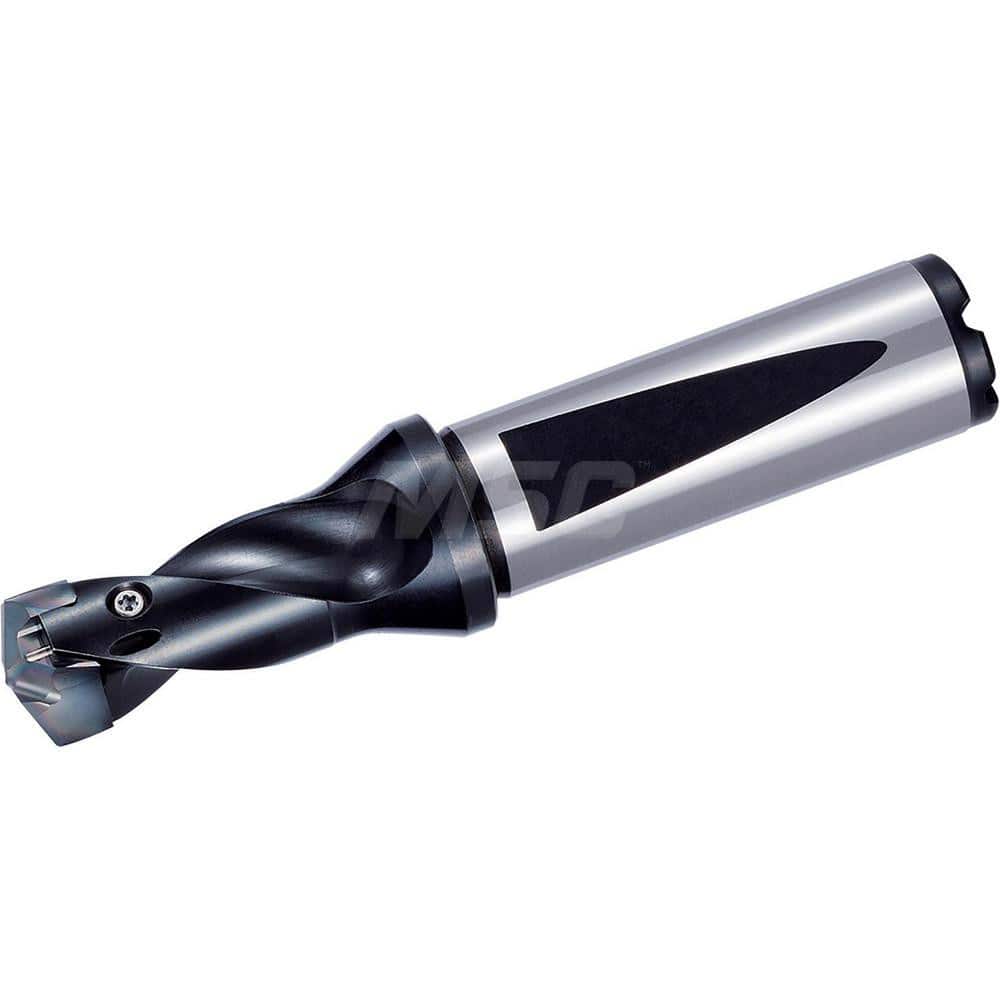

Replaceable Tip Drill: 14 to 14.49 mm Drill Dia, 21.8 mm Max Depth, 16 mm Flange Shank Seat Size 14, 90.2 mm OAL, Through Coolant
Item #: 18253849
Brand: Kyocera
Model #: THD11527
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.5512 |
| Minimum Drill Diameter (mm) | 14.00 |
| Maximum Drill Diameter (mm) | 14.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.5705 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 21.80 |
| Shank Type | Flange |
| Insert Style | DA |
| Insert Seat Size | 14 |
| Shank Diameter (mm) | 16.00 |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Overall Length (mm) | 90.20 |
| Series | DRA |
| Toolholder Style | SF |
| Body Length | 42.20 |
| Shank Length (mm) | 48.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 119 |
