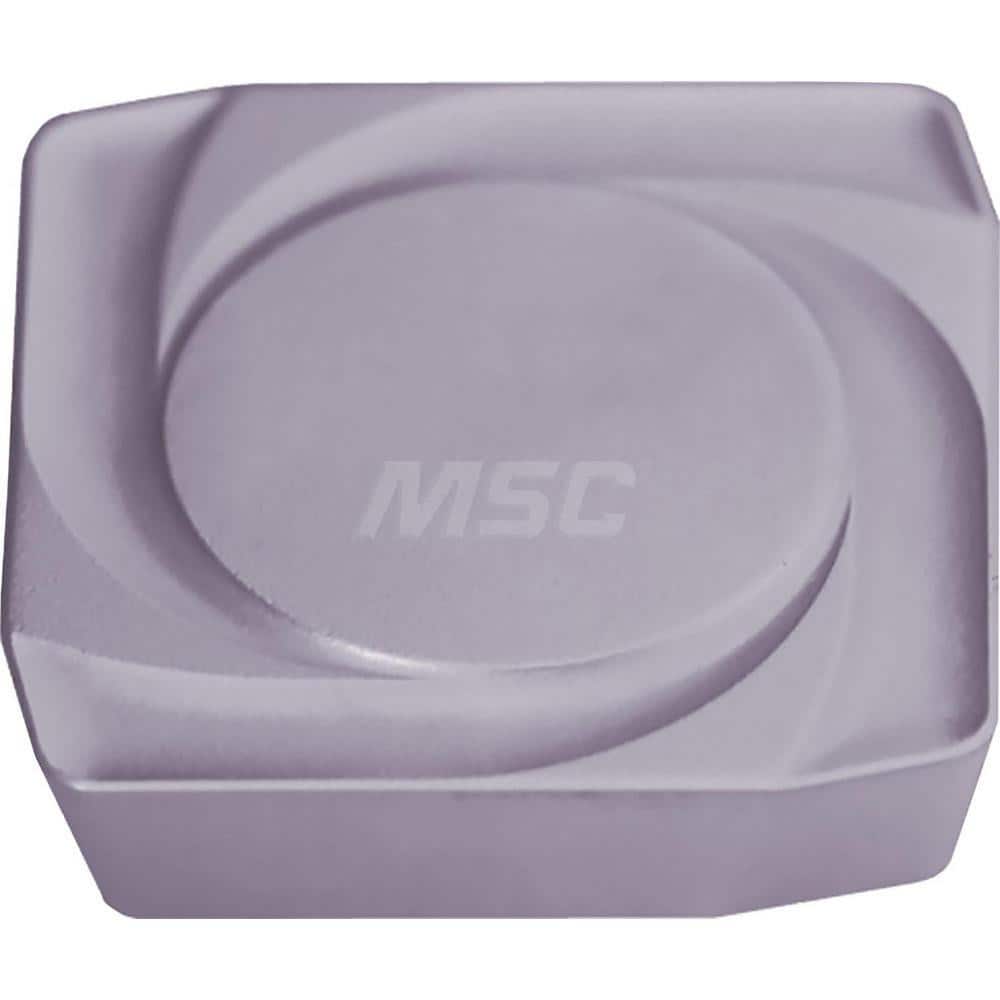

Kyocera SPMR 42EDERH PR1225 Grade PVD Carbide, 90 Degree Square, Positive Rake Angle, Right-Hand Milling insert for Roughing in (P) Free-Cutting Steel
Item #: 18253302
Brand: Kyocera
Model #: TKB05453
Product Specifications
| Insert Style | SPMR |
| Insert Size | 42 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1/2 |
| Manufacturer Grade | PR1225 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (mm) | 1.00 |
| Insert Hand | Right Hand |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Rake | Positive |
| Ansi Code | SPMR42EDERHPR1225 |
| Iso Code | SPMR42EDER-H |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SPMR42EDERHPR1225 |
| Chip Breaker | H |
| Cutting Direction | Right Hand |
| Shape | Square |
| Insert Holding Method | Clamp |
| Coating/Finish | Megacoat |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
