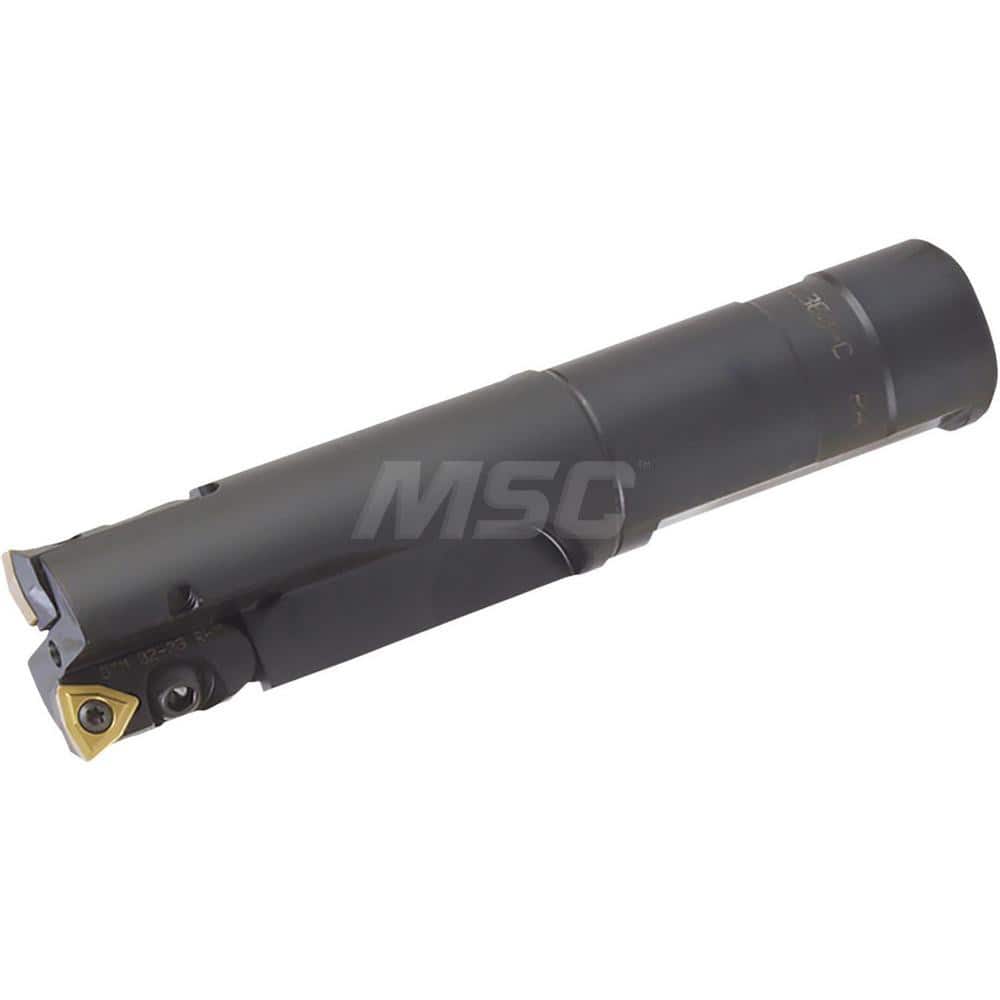

Kyocera CD2360C, Coremaster CoreDrill 0.0929-0.0969″ Cutting Diameter, 1.5000″ Shank Diameter, Coolant-Through Indexable Insert Drill
Item #: 18253278
Brand: Kyocera
Model #: OTM86094
Product Specifications
| Drill Style | CCD |
| Drill Diameter (Decimal Inch) | 0.0929 |
| Maximum Drill Diameter (Decimal Inch) | 2.4600 |
| Drill Diameter (mm) | 2.36 |
| Maximum Drill Depth (Inch) | 3-1/8 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/2 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | WCMX |
| Drill Depth by Diameter Ratio | 2xD |
| Series | CCD |
| Body Length (Decimal Inch) | 4.0000 |
| Shank Length (Decimal Inch) | 3.0000 |
| Overall Length/Projection (Decimal Inch) | 7.0000 |
| Insert Compatibility | WCMX050308-M1A?; WCMX050308-M1? |
| Collar Diameter (Decimal Inch) | 2.2700 |
| Collar Diameter (mm) | 57.66 |
| Extension From Holder (Inch) | 4.0000 |
| Coolant Through | Yes |
