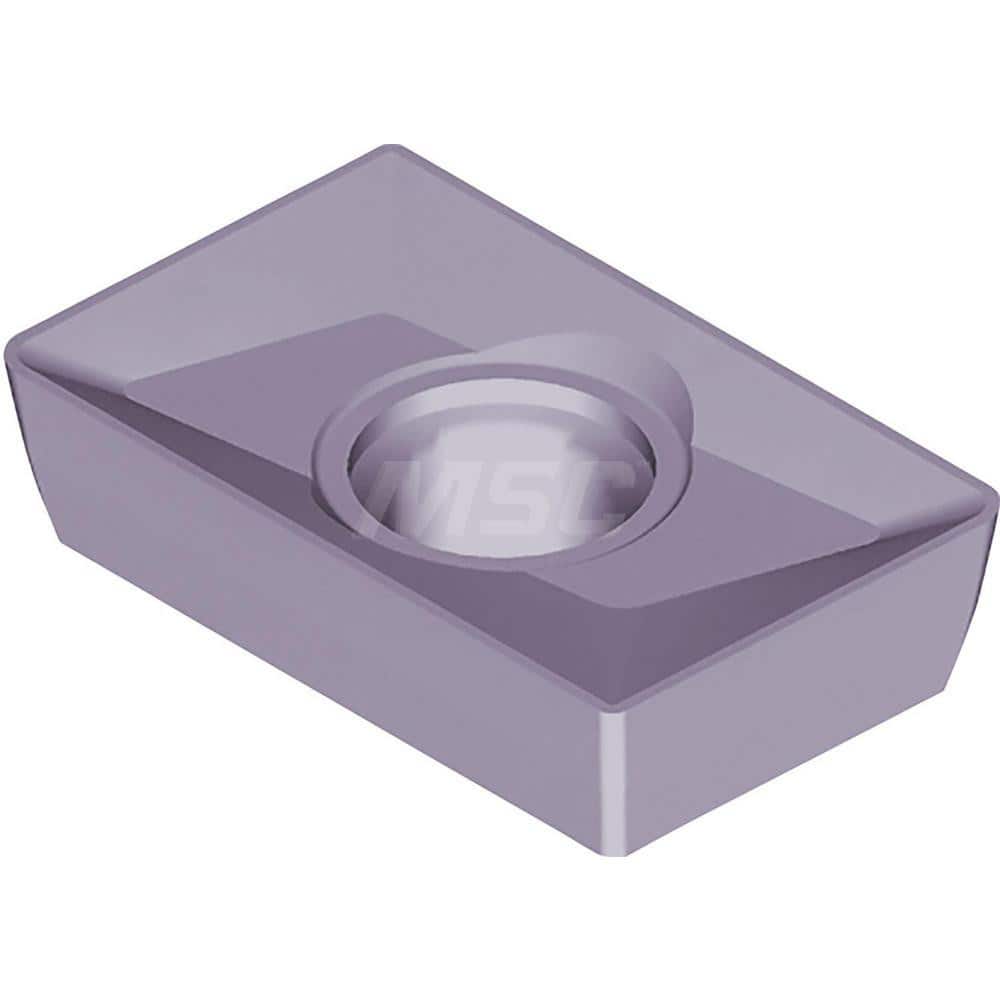

Kyocera XPMT 15T304 PR1510 Grade PVD Carbide, Indexable Milling Insert, Parallelogram, Rake Angle, Neutral Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron
Item #: 18252726
Brand: Kyocera
Model #: 8861535
Product Specifications
| Insert Style | XPMT |
| Insert Size | 15T304 |
| Insert Material | Solid Carbide |
| Width (Inch) | 3/8 |
| Manufacturer Grade | PR1510 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Hand | Right Hand |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 15.00 |
| Rake | Positive |
| Ansi Code | XPMT15T304PR1510 |
| Iso Code | XPMT15T304PR |
| Cutting Edge Style | Chamfered & Honed |
| Manufacturers Catalog Number | XPMT15T304PR1510 |
| Cutter Series Compatibility | FM; EM; CM |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Thickness (mm) | 3.97 |
| Coating/Finish | Megacoat Nano |
| Length | 15.42 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
