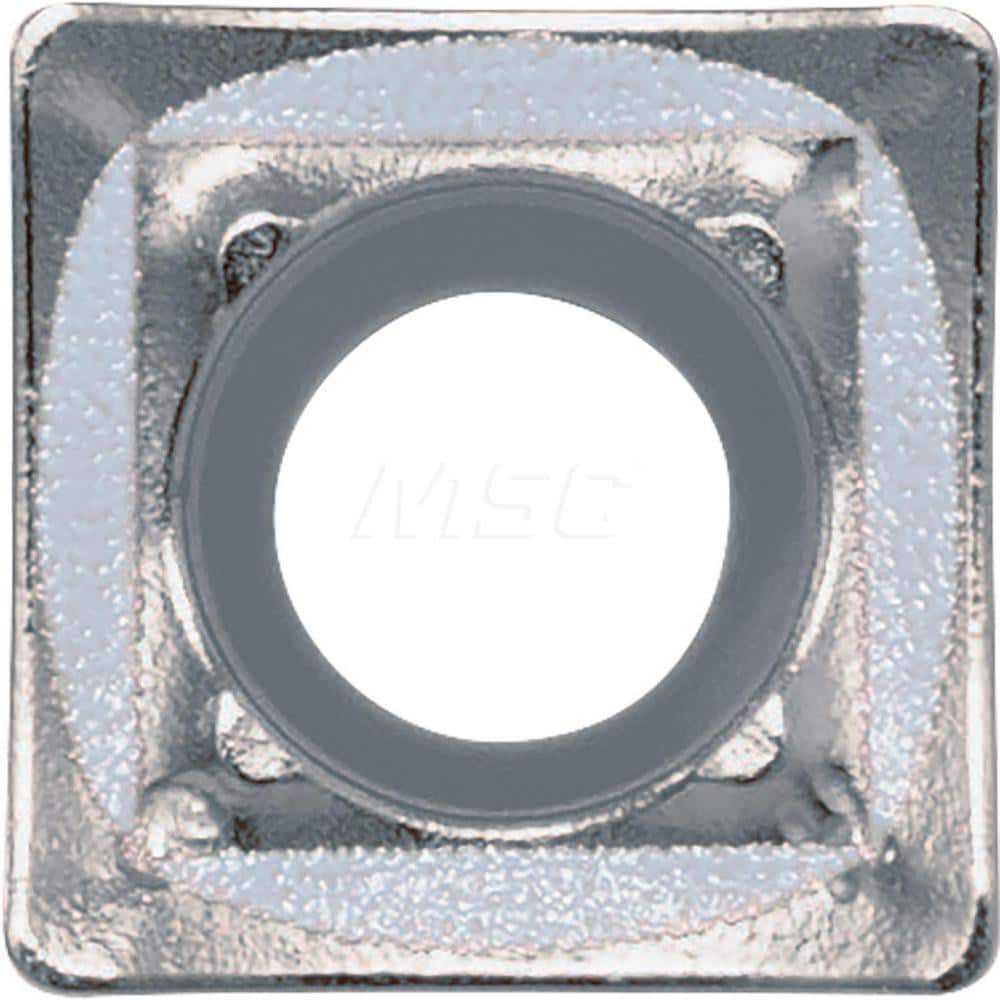

Indexable Drill Insert: SCMTGH-E CA520D, Carbide TiCN, Al2O3 & TiN Finish, 90 °
Item #: 18250746
Brand: Kyocera
Model #: TMF40003
Product Specifications
| Insert Style | SCMT |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CA520D |
| Thickness (mm) | 5.00 |
| Inscribed Circle (mm) | 13.79 |
| Cutting Direction | Neutral |
| Corner Radius (mm) | 0.79 |
| Chipbreaker | GH-E |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.69 |
| Relief Angle | 7 |
| Primary Workpiece Material | P; M |
| Iso Code | SCMT140508-GH-E |
| Manufacturers Catalog Number | SCMT140508GHECA520D |
| Drill Style | DRV |
| Insert Size | 140508 |
| Width (Mm - 2 Decimals) | 13.79 |
| Length (Mm) | 13.79 |
| Length (Decimal Inch - 4 Decimals) | 0.5430 |
| Included Angle Degree | 90 |
| Coating/Finish | TiCn; TiN; Al2O3 |
