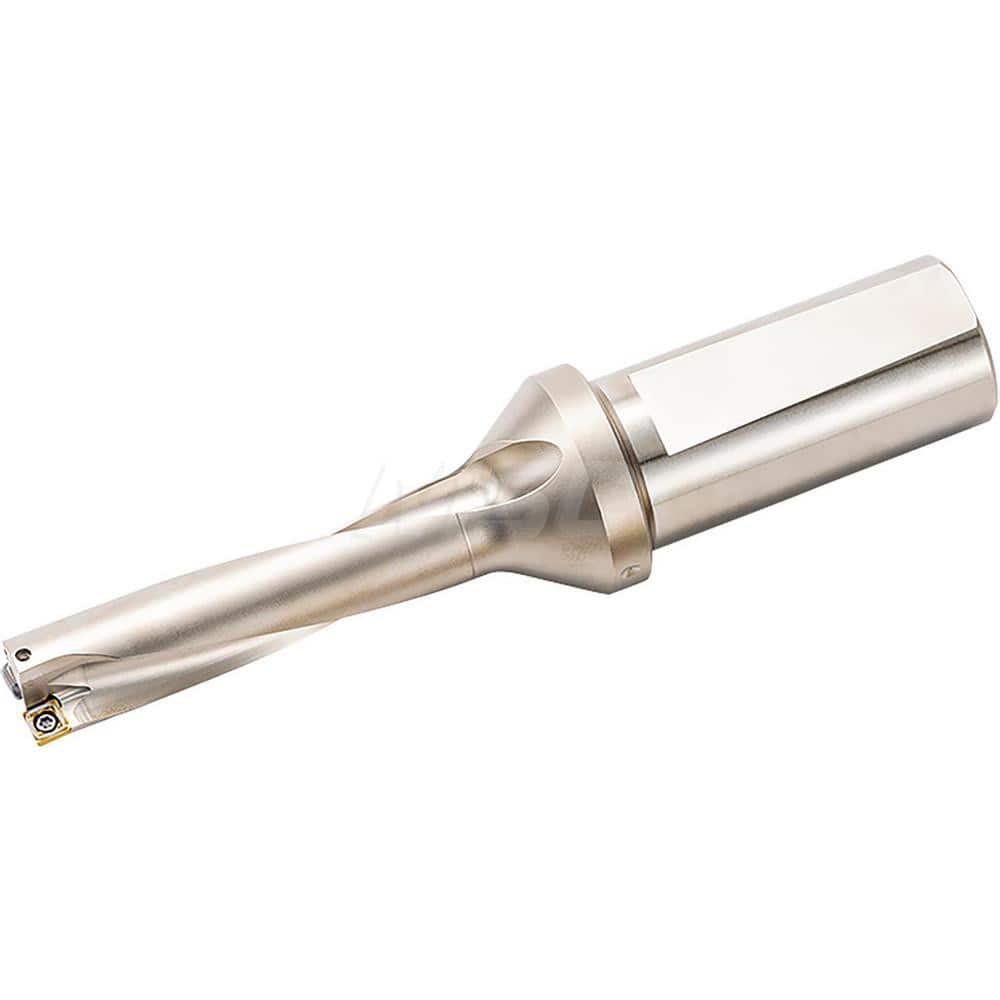

Kyocera S32DRV280M409, DRV Magic Drill 28.00mm Cutting Diameter, 32.00mm Shank Diameter, 4xD, Coolant-Through Indexable Insert Drill
Item #: 18246504
Brand: Kyocera
Model #: THD11685
Product Specifications
| Drill Style | DRV |
| Maximum Drill Diameter (mm) | 28.00 |
| Drill Diameter (Decimal Inch) | 1.1024 |
| Drill Diameter (mm) | 28.00 |
| Maximum Drill Depth (mm) | 112.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | SCMT |
| Drill Depth by Diameter Ratio | 4xD |
| Series | DRV |
| Body Length | 135.00 |
| Shank Length (mm) | 59.00 |
| Overall Length/Projection (mm) | 194.00 |
| Insert Compatibility | SCMT090405-?-E; SCMT090410-?-I |
| Collar Diameter (mm) | 41.00 |
| Extension From Holder (Inch) | 5.3150 |
| Coolant Through | Yes |
