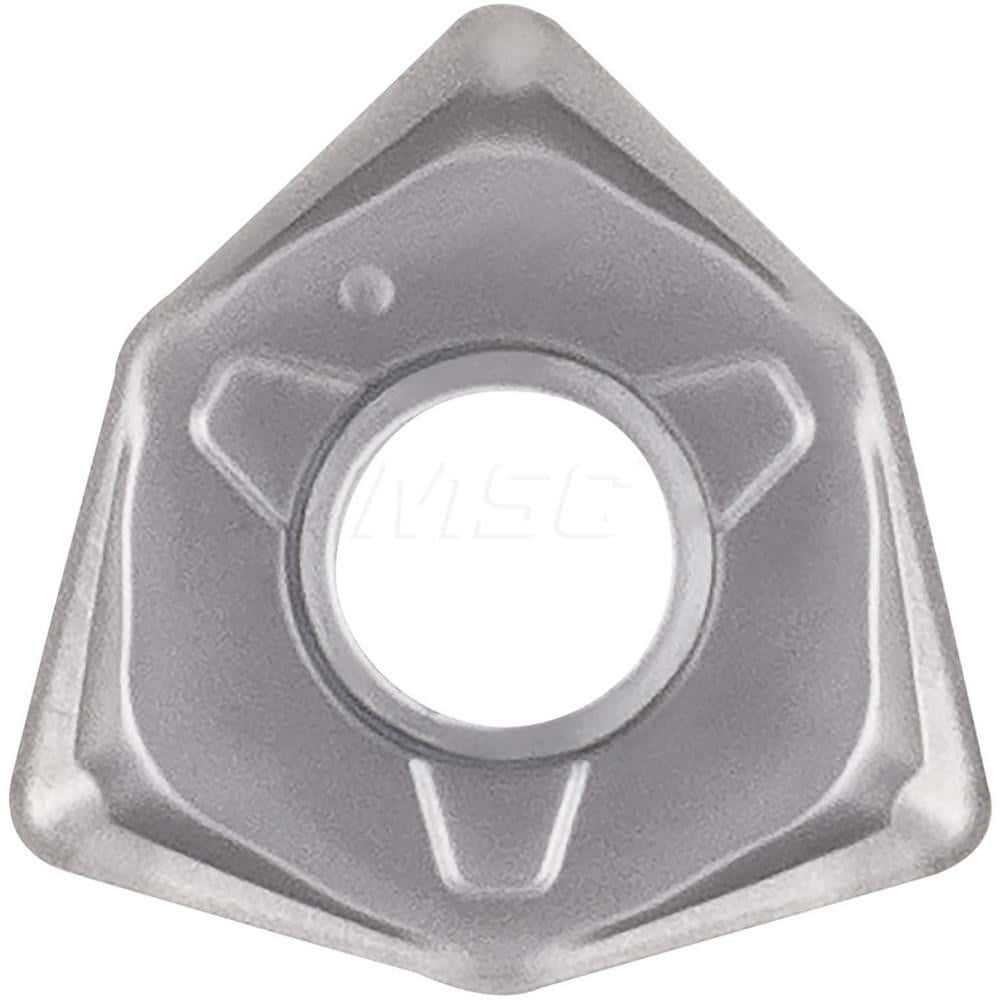

Kyocera WNMU 050408ENGH PR015S Grade PVD Carbide, 80 Degree Trigon, Negative Rake Angle, Neutral Milling insert for Roughing in (H) Hardened Materials and n/a
Item #: 18243196
Brand: Kyocera
Model #: TLJ40004
Product Specifications
| Insert Style | WNMU |
| Insert Size | 050408 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR015S |
| Inscribed Circle (mm) | 8.80 |
| Corner Radius (mm) | 0.80 |
| Insert Hand | Neutral |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.40 |
| Maximum Depth of Cut (mm) | 5.00 |
| Rake | Negative |
| Ansi Code | WNMU050408ENGHPR015S |
| Iso Code | WNMU050408EN-GH |
| Cutting Edge Style | Ground |
| Manufacturers Catalog Number | WNMU050408ENGHPR015S |
| Cutter Series Compatibility | MFWN |
| Chip Breaker | GH |
| Cutting Direction | Neutral |
| Shape | Trigon |
| Insert Holding Method | Screw |
| Thickness (mm) | 4.20 |
| Coating/Finish | Megacoat Hard |
| Length | 8.80 |
| Width (Mm - 2 Decimals) | 8.80 |
