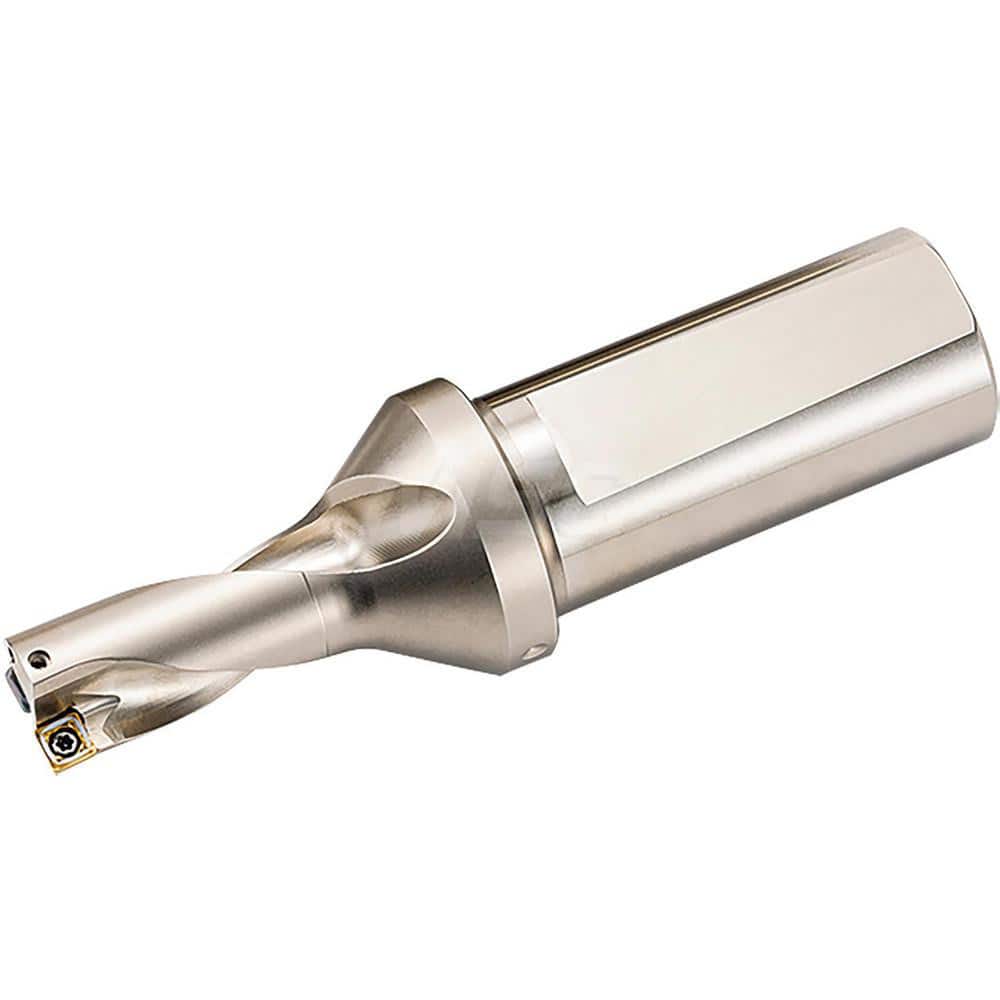

Kyocera S40DRV400M214, DRV Magic Drill 40.00mm Cutting Diameter, 40.00mm Shank Diameter, 2xD, Coolant-Through Indexable Insert Drill
Item #: 18242834
Brand: Kyocera
Model #: THD11910
Product Specifications
| Drill Style | DRV |
| Maximum Drill Diameter (mm) | 40.00 |
| Drill Diameter (Decimal Inch) | 1.5748 |
| Drill Diameter (mm) | 40.00 |
| Maximum Drill Depth (mm) | 80.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | SCMT |
| Drill Depth by Diameter Ratio | 2xD |
| Series | DRV |
| Body Length | 112.00 |
| Shank Length (mm) | 69.00 |
| Overall Length/Projection (mm) | 181.00 |
| Insert Compatibility | SCMT140510-?-I; SCMT140508-?-E |
| Collar Diameter (mm) | 49.00 |
| Extension From Holder (Inch) | 4.4094 |
| Coolant Through | Yes |
