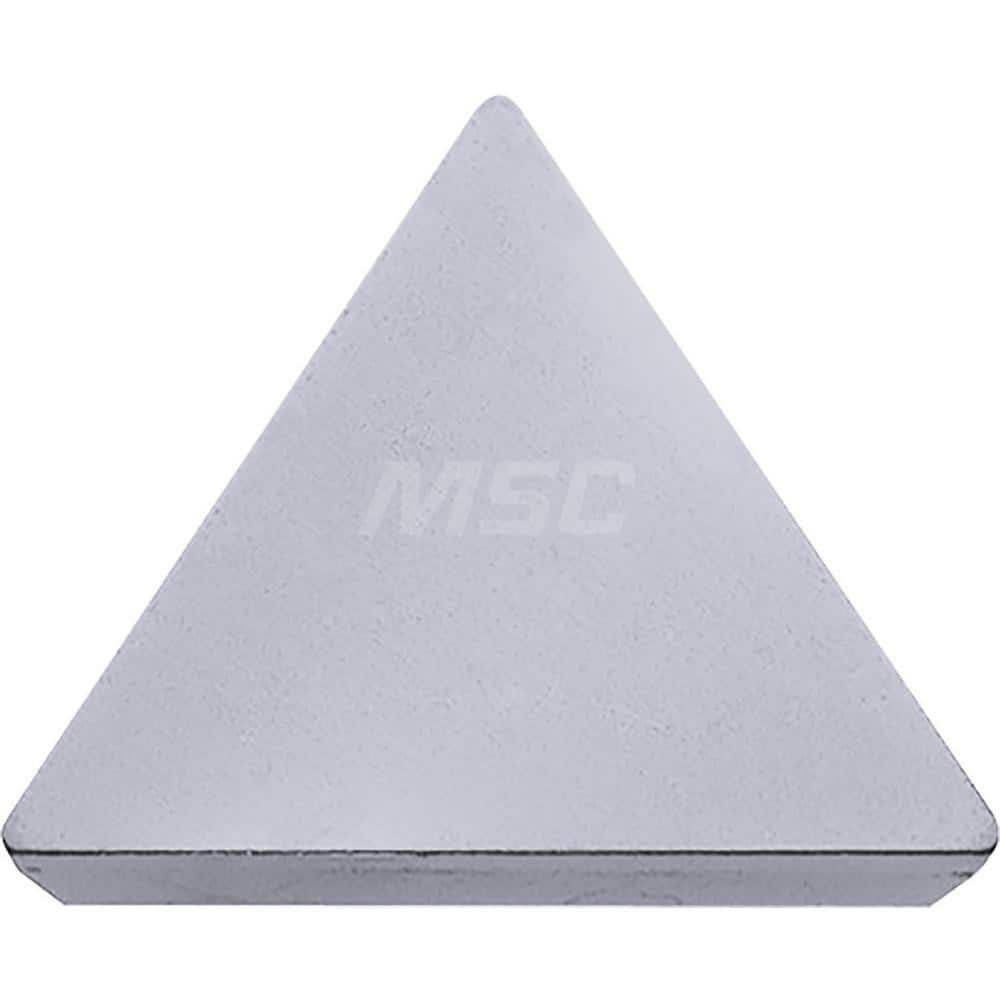

Kyocera TPM 322 TN100M Grade Uncoated Cermet, 11 Degree Triangle, Positive Rake Angle, Neutral Milling Insert for Finishing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel
Item #: 18242776
Brand: Kyocera
Model #: TSP00971
Product Specifications
| Insert Style | TPM |
| Insert Size | 322 |
| Insert Material | Cermet |
| Width (Inch) | 3/8 |
| Manufacturer Grade | TN100M |
| Length (Inch) | 3/8 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Neutral |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Rake | Positive |
| Ansi Code | TPM322TN100M |
| Iso Code | TPMN160308 |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | TPM322TN100M |
| Cutter Series Compatibility | CTTP; CTUP; CTFP; CTGP |
| Cutting Direction | Neutral |
| Shape | Triangle |
| Insert Holding Method | Clamp |
| Coating/Finish | TiCN; NbC |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
