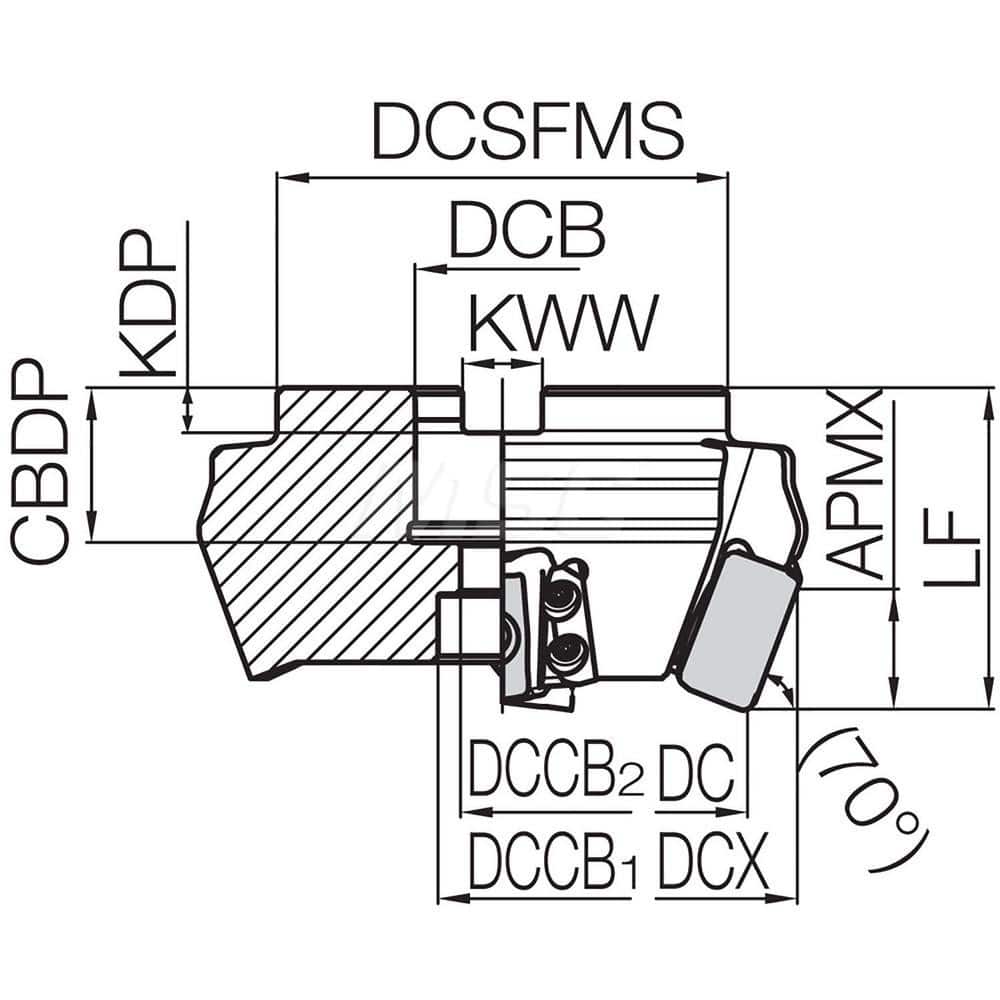

Kyocera MFLN 70080R4TM Metric Bore Diameter, Standard Pitch, 4 Flute, 70 Degree Face Mill with a 80.00mm Cutting Diameter for Shouldering, Facing, Chamfering Applications
Item #: 18241414
Brand: Kyocera
Model #: THN08457
Product Specifications
| Minimum Cutting Diameter (mm) | 80.00 |
| Maximum Cutting Diameter (mm) | 93.00 |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 70 |
| Compatible Insert Size Code | LOGU221616ER-GM |
| Cutter Style | MFLN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | +15 (Axial) |
| Series | MFLN |
| Hub Diameter (Decimal Inch) | 3.6614 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Counterbore Diameter (Decimal Inch) | 0.7874 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MFLN70080R4TM |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Number Of Flutes | 4 |
