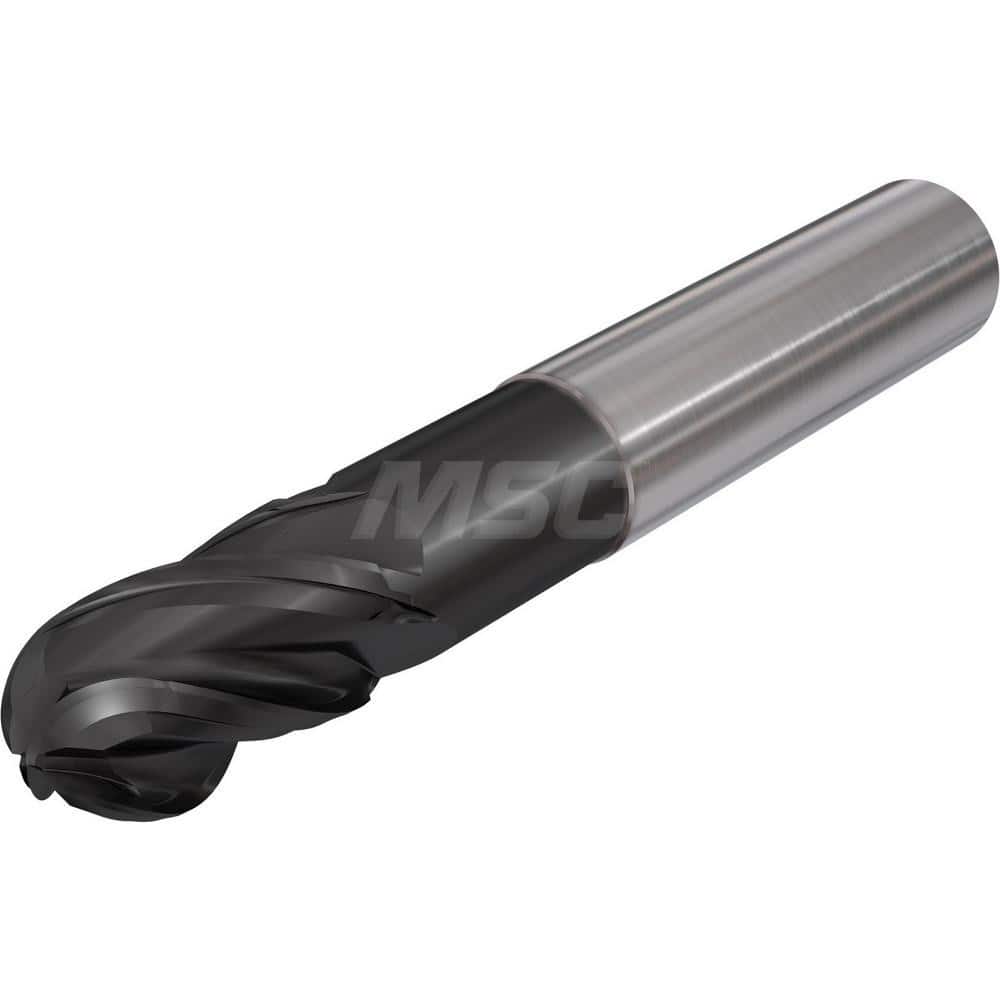

Ball End Mill: 1″ Dia, 5 Flute, Solid Carbide 4″ OAL, 1″ Shank Dia, 38 ° Helix, TiAlCN Coated, Single End, Series Flash Solid
Item #: 18180141
Brand: Iscar
Model #: 3398517
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Length of Cut (Inch) | 1-1/2 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| Helix Angle | 38 |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 4 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Flash Solid |
| Flute Type | Spiral |
| Centercutting | Yes |
| Corner Radius (Decimal Inch) | 1/2 |
| Single Or Double End | Single |
| Number Of Flutes | 5 |
| Coating/Finish | TiAlCN |
| Manufacturers Catalog Number | EBI-5 1.-1.5CVF4. |
