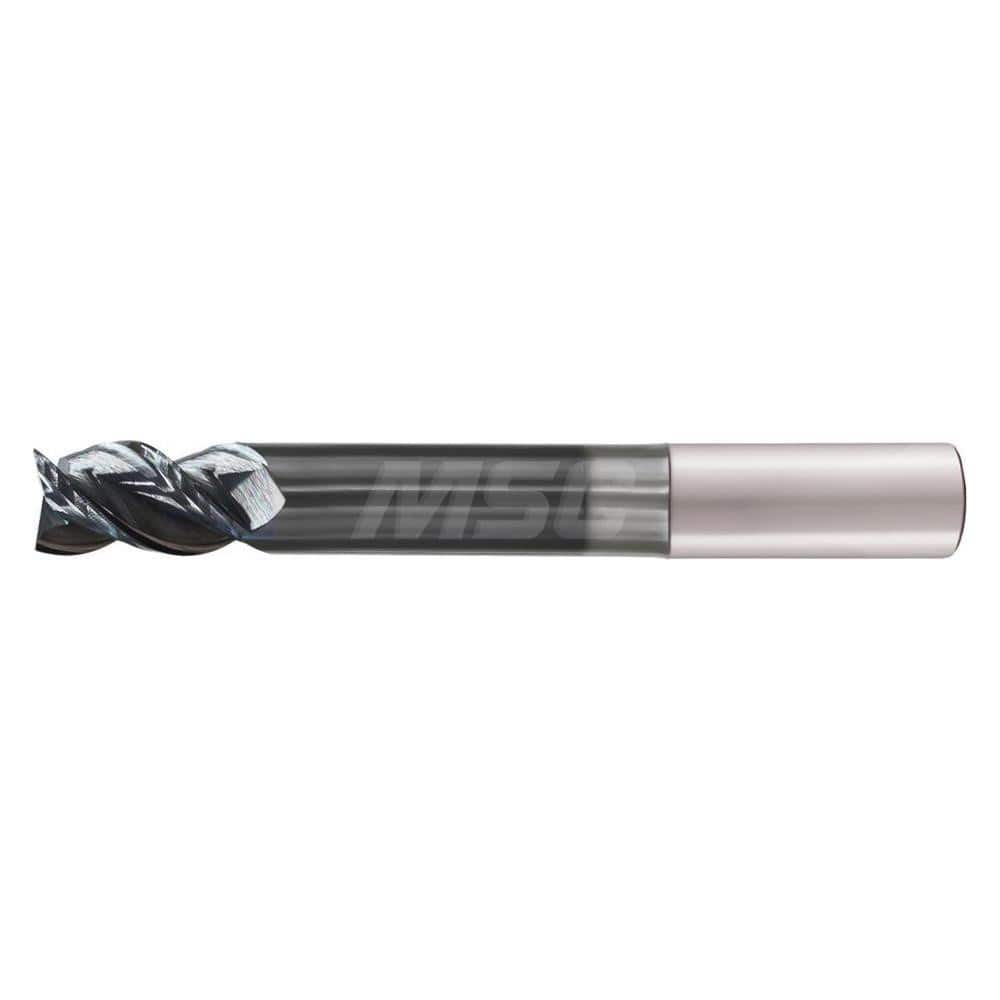

Square End Mill: 1'' Dia, 2-1/4'' LOC, 1'' Shank Dia, 5'' OAL, 5 Flutes, Solid Carbide Single End, TiAlCN Finish, Spiral Flute, 38 ° Helix, Mfr Grade Submicron Grain, Centercutting, RH Cut, RH Flute
Item #: 18179788
Brand: Iscar
Model #: 3398538
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 2-1/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1 |
| Finish/Coating | TiAlCN |
| Overall Length (Inch) | 5 |
| Helix Angle | 38 |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 2.2500 |
| Material Grade | Submicron |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 5.0000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
