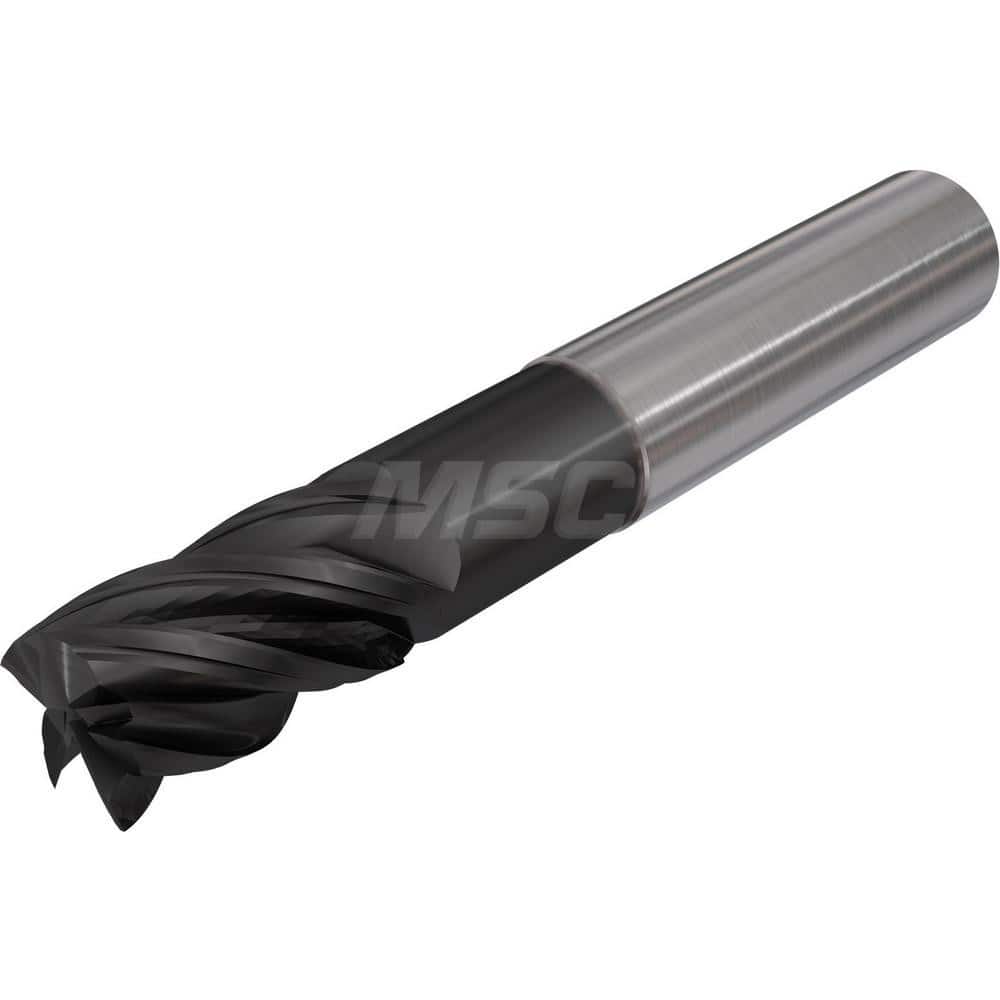

Square End Mill: 3/4'' Dia, 4-1/8'' LOC, 3/4'' Shank Dia, 7'' OAL, 5 Flutes, Solid Carbide Single End, TiAlCN Finish, Spiral Flute, 38 ° Helix, Mfr Grade Submicron Grain, Centercutting, RH Cut, RH Flute
Item #: 18179192
Brand: Iscar
Model #: 3398547
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 4-1/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Finish/Coating | TiAlCN |
| Overall Length (Inch) | 7 |
| Helix Angle | 38 |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 4.1250 |
| Material Grade | Submicron |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 7.0000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
