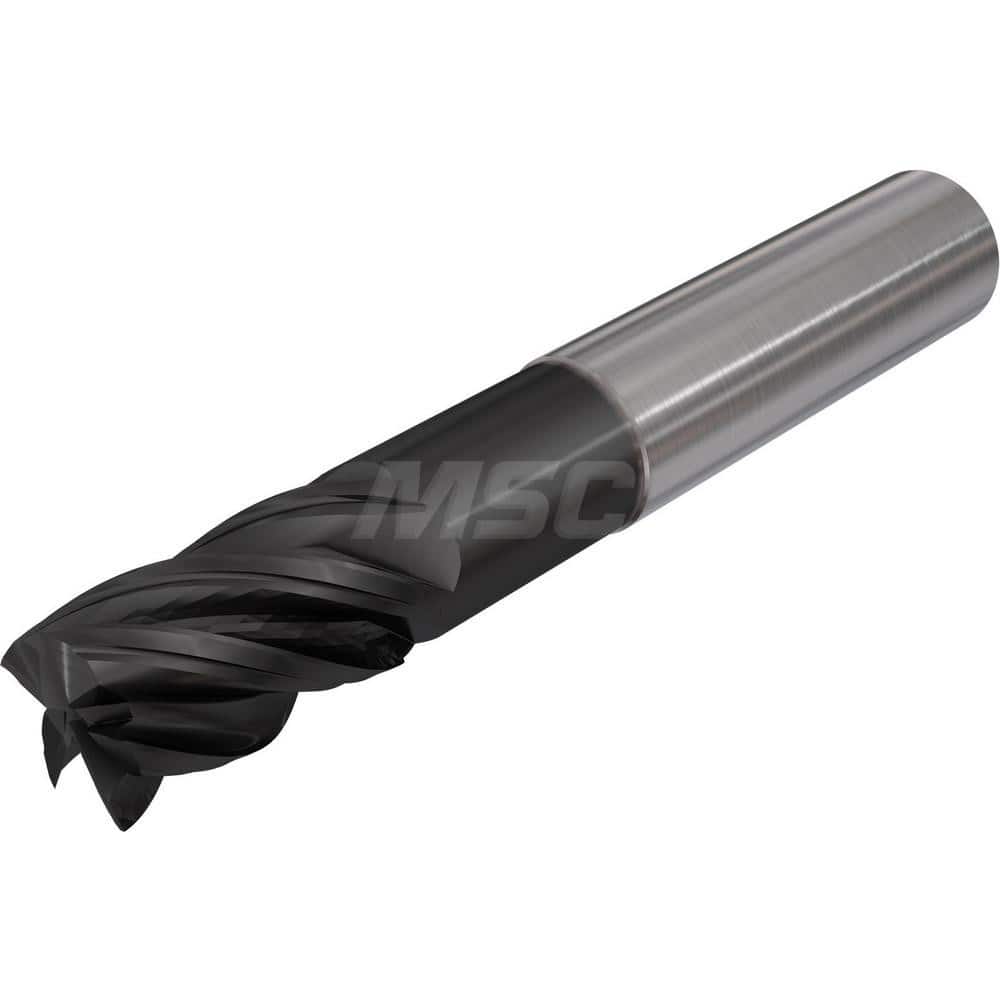

Corner Radius End Mill: 3/4″ Dia, 3″ LOC, 0.015″ Radius, 4 Flutes, Solid Carbide 6″ OAL, 3/4″ Shank Dia, 38 ° Helix, TiAlCN Coated, Corner Radius End, Centercutting, Series Flash Solid
Item #: 18178871
Brand: Iscar
Model #: 3398051
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 3 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 38 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Submicron |
| Single Or Double End | Single |
| Manufacturers Catalog Number | ECI-4 750-3.0C015VF6 |
| Coating/Finish | TiAlCN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 3.0000 |
