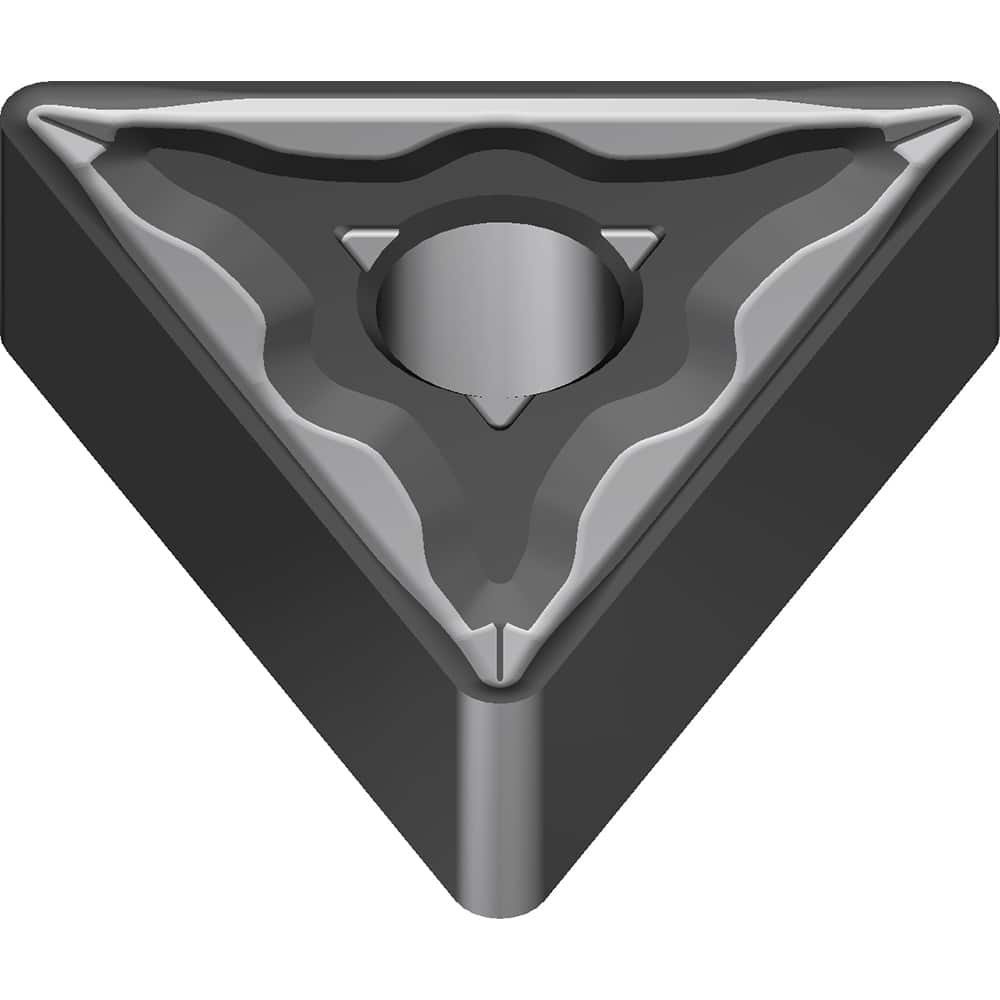

Sumitomo - TNMG666EEM AC8025P Carbide Turning Insert
Item #: 18145219
Brand: Sumitomo
Model #: 19P7CRV
Product Specifications
| Insert Style | TNMG |
| Insert Size | 666 |
| Material | Carbide |
| Length (Decimal Inch) | 1.2992 |
| Inscribed Circle (Inch) | 0.75 |
| Thickness (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Manufacturer's Grade | AC8025P |
| Coating | Absotech |
| Chip Breaker | EEM |
| Hole Diameter (Decimal Inch) | 0.3122 |
| ISO Number | TNMG330924N-EM |
| Rake | Negative |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TNMG666EEM-AC8025P |
| Primary Workpiece Material | Steel |
| Included Angle | 60 |
