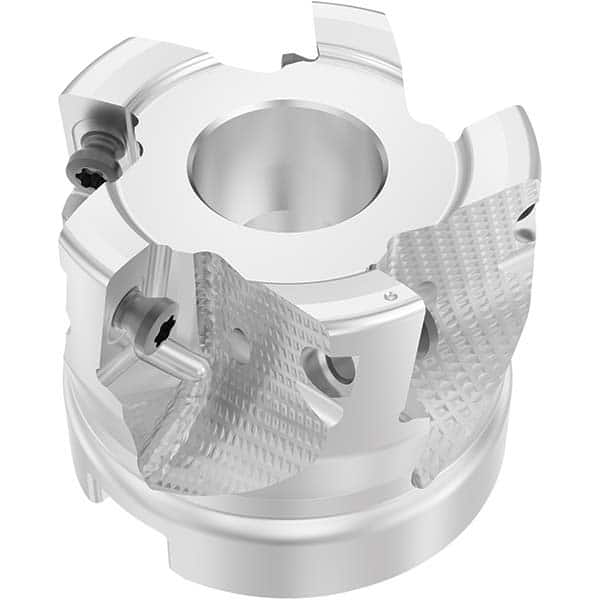

Indexable Square-Shoulder Face Mill: R220.69-02.00-XO16-5A, 2'' Cut Dia, 0.7500″ Arbor Hole Dia, Uses 5, XO X16 Inserts, Through Coolant, Series R220.69
Item #: 18140301
Brand: Seco
Model #: 03336143
Product Specifications
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (mm) | 15.00 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | XO X16 |
| Maximum Ramping Angle | 2.50 |
| Cutter Style | R220.69 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | R220.69 |
| Overall Height (Mm - 5 Decimals) | 40.00 |
| Keyway Width (mm) | 8.20 |
| Hub Diameter (mm) | 47.00 |
| Maximum RPM | 11700 |
| Tool Application | Ramping |
| Number of Adjustable Pockets | 0 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
