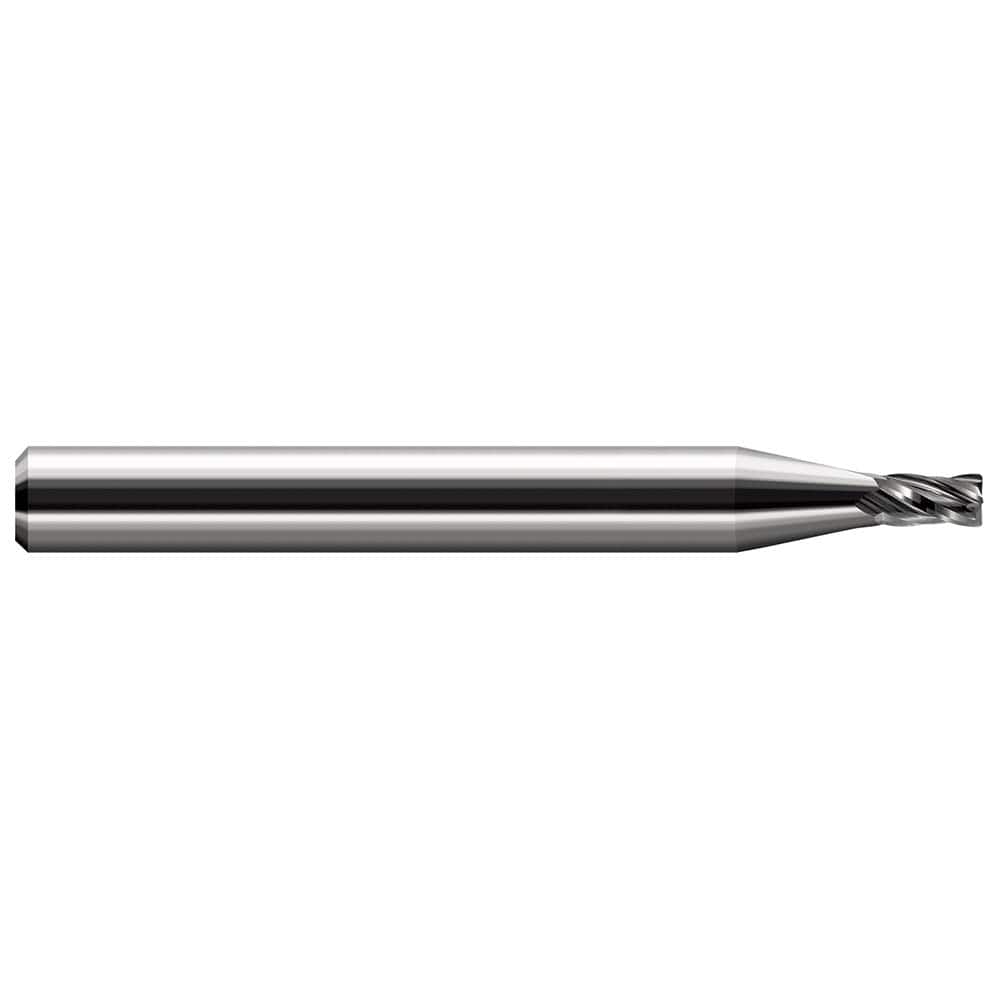

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/16 ; Mill Diameter (Decimal Inch): 0.0620 ; End Type: Corner Radius ; Corner Radius (mm): 0.20 ; Corner Radius (Decimal Inch): 0.0080 ; Number of Flutes: 4
Item #: 18119412
Brand: Harvey Tool
Model #: 913762
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/16 ; Mill Diameter (Decimal Inch): 0.0620 ; End Type: Corner Radius ; Corner Radius (mm): 0.20 ; Corner Radius (Decimal Inch): 0.0080 ; Number of Flutes: 4
| Mill Diameter (Inch) | 1/16 |
| Mill Diameter (Decimal Inch) | 0.0620 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (Inch) | 3/32 |
| Length of Cut (Decimal Inch) | 0.0930 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Miniature End Mills - Corner Radius - Stub & Standard |
