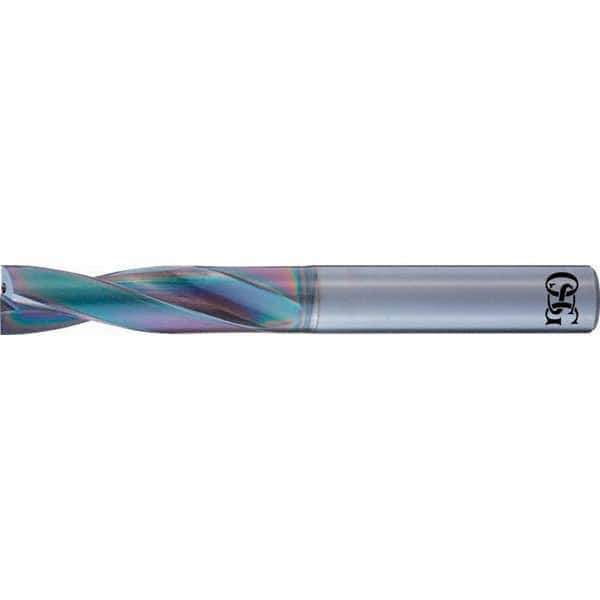

Screw Machine Length Drill Bit: 0.3189″ Dia, 0 °, Solid Carbide EgiAs Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5720
Item #: 18077982
Brand: OSG
Model #: 3334367
Product Specifications
| Drill Bit Size (mm) | 8.10 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | EgiAs |
| Drill Point Angle | 0 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Bit Size (Decimal Inch) | 0.3189 |
| Drill Tip Finish/Coating | EgiAs |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Shank Diameter (mm) | 10.00 |
| Series | 5720 |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 38.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| Drill Bit Size Range (mm) | 8.00 to 9.50 |
