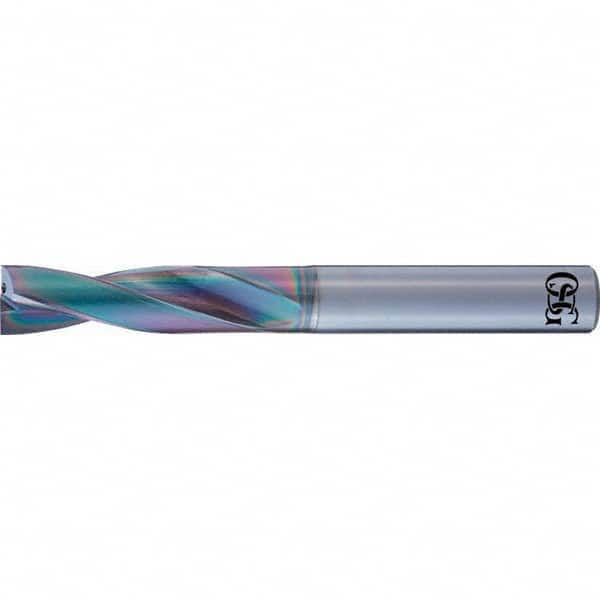

Screw Machine Length Drill Bit: 0.4843″ Dia, 0 °, Solid Carbide EgiAs Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5720
Item #: 18077032
Brand: OSG
Model #: 3334414
Product Specifications
| Drill Bit Size (mm) | 12.30 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | EgiAs |
| Drill Point Angle | 0 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Drill Bit Size (Decimal Inch) | 0.4843 |
| Drill Tip Finish/Coating | EgiAs |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Diameter (mm) | 14.00 |
| Series | 5720 |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 56.00 |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
