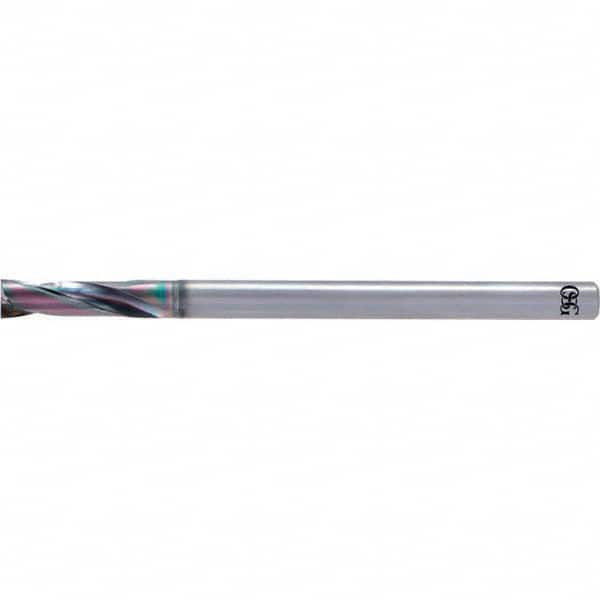

Screw Machine Length Drill Bit: 0.2126″ Dia, 0 °, Solid Carbide EgiAs Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5705
Item #: 17919150
Brand: OSG
Model #: 3332540
Product Specifications
| Drill Bit Size (mm) | 5.40 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | EgiAs |
| Drill Point Angle | 0 |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Bit Size (Decimal Inch) | 0.2126 |
| Drill Tip Finish/Coating | EgiAs |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Shank Diameter (mm) | 6.00 |
| Series | 5705 |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 2xD |
| Flute Length (mm) | 27.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Drill Bit Size Range (mm) | 5.00 to 6.50 |
