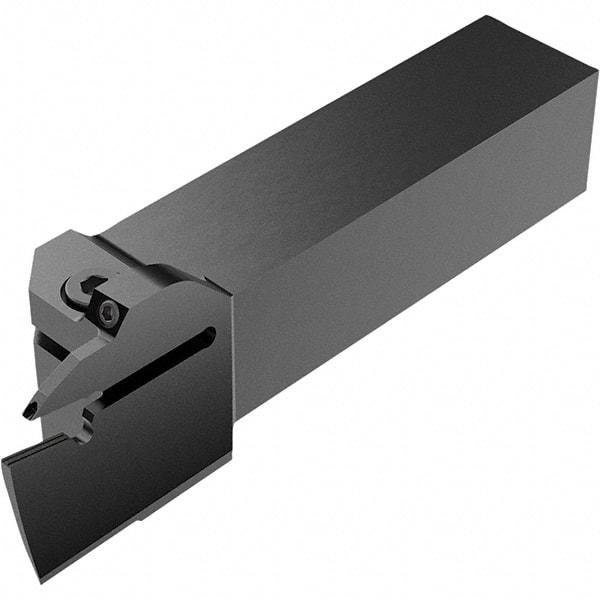

Seco - CFO, External, Right Hand, 37.5mm Max Depth of Cut, 70 to 100mm Groove Width, Indexable Grooving Tool Holder - LC.. 1606.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 154mm OAL, Through Coolant
Item #: 17906728
Brand: Seco
Model #: 03244780
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 37.50 |
| Minimum Groove Width (mm) | 70.00 |
| Maximum Groove Width (mm) | 100.00 |
| Overall Length (mm) | 154.00 |
| Toolholder Style | CFO |
| Insert Compatibility | LC.. 1606.. |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | JETI |
| Through Coolant | Through Coolant |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving |
| Insert Holding Method | Clamp |
| Insert Seat Size | 6 |
| Number of Inserts Used on Toolholder | 1 |
| igrvh Maximum Bore Depth (mm) | 37.50 |
| Head Length (mm) | 70.00 |
| Toolholder Material | Steel |
