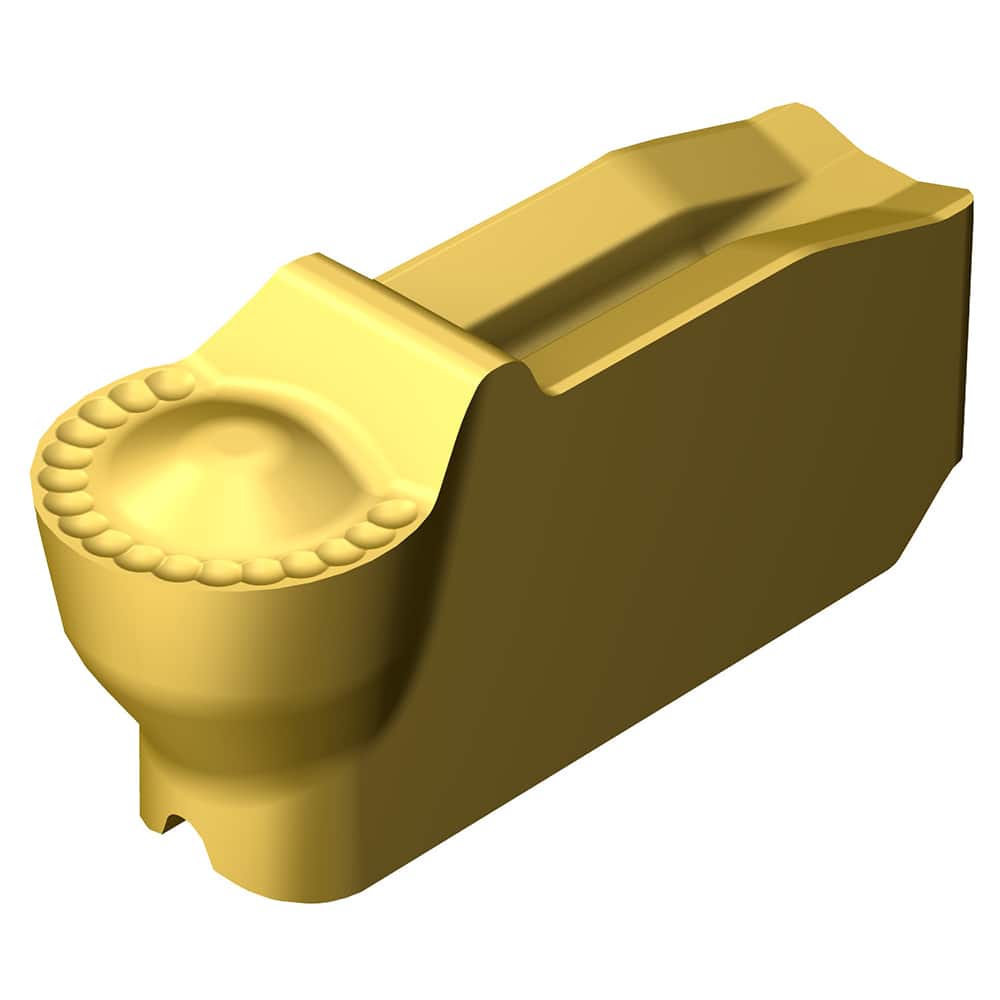

Profiling Insert: QI-NH 1135, Solid Carbide 0.0787″ Corner Radius, Series CoroCut QI
Item #: 17698671
Brand: Sandvik Coromant
Model #: 7937630
Product Specifications
| Insert Style | QI-N |
| Insert Size Code | H |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 1135 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0787 |
| Relief Angle | 8 |
| Chipbreaker | RM |
| Series | CoroCut QI |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | Stainless Steel |
| MSC/Manufacturer Number | QI-NH-0400-RM 1135 |
| Coating/Finish | TiN; TiCrN; Al2O3 |
