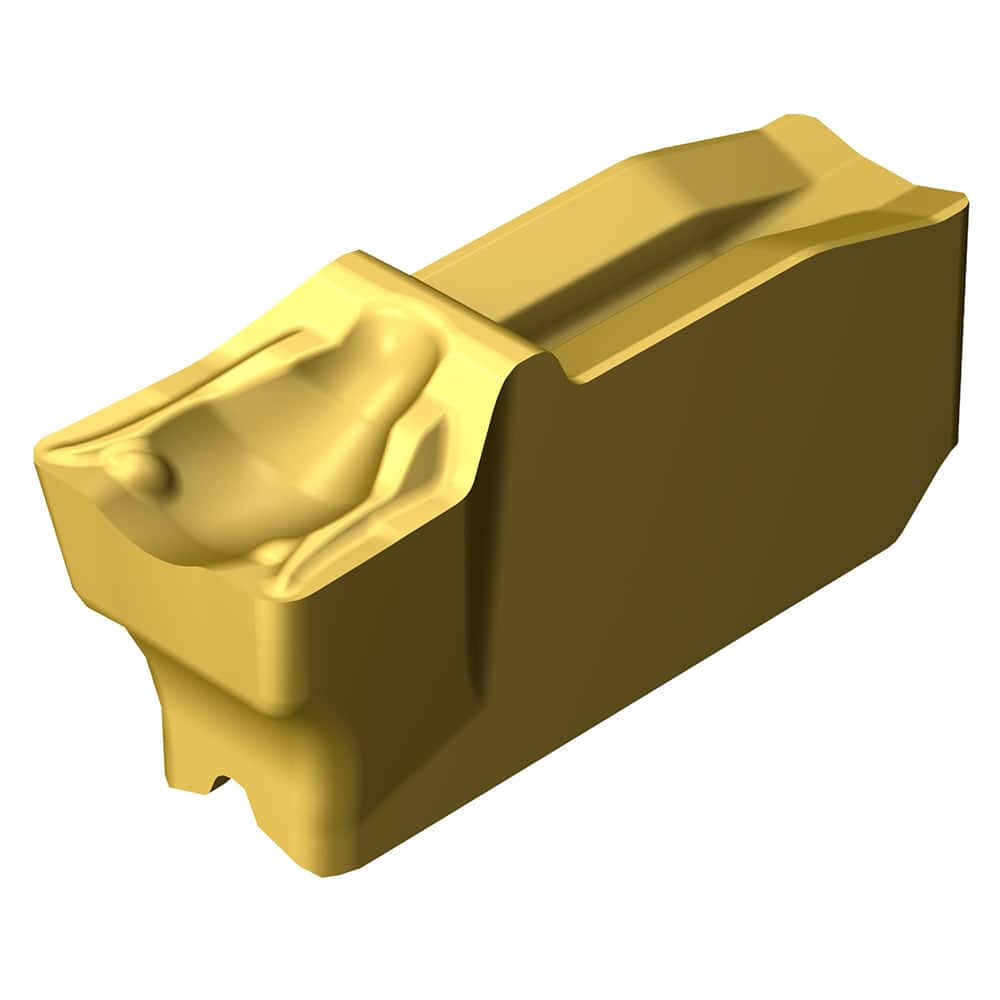

Grooving Insert: QI-NGTF 1135, Solid Carbide Neutral, 0.1181″ Cutting Width, 0.0748″ Max Depth, Series CoroCut QI
Item #: 17697947
Brand: Sandvik Coromant
Model #: 7937611
Product Specifications
| Insert Style | QI-N |
| Insert Size | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 1135 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (Decimal Inch) | 0.0748 |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Series | CoroCut QI |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | Stainless Steel |
| Iso Code | QI-NG-0300-0003-TF 1135 |
| Relief Angle | 8 |
| Manufacturers Catalog Number | QI-NG-0300-0003-TF 1135 |
| Chip Breaker | TF |
| Insert Seat Size | G |
| Number Of Cutting Edges | 1 |
