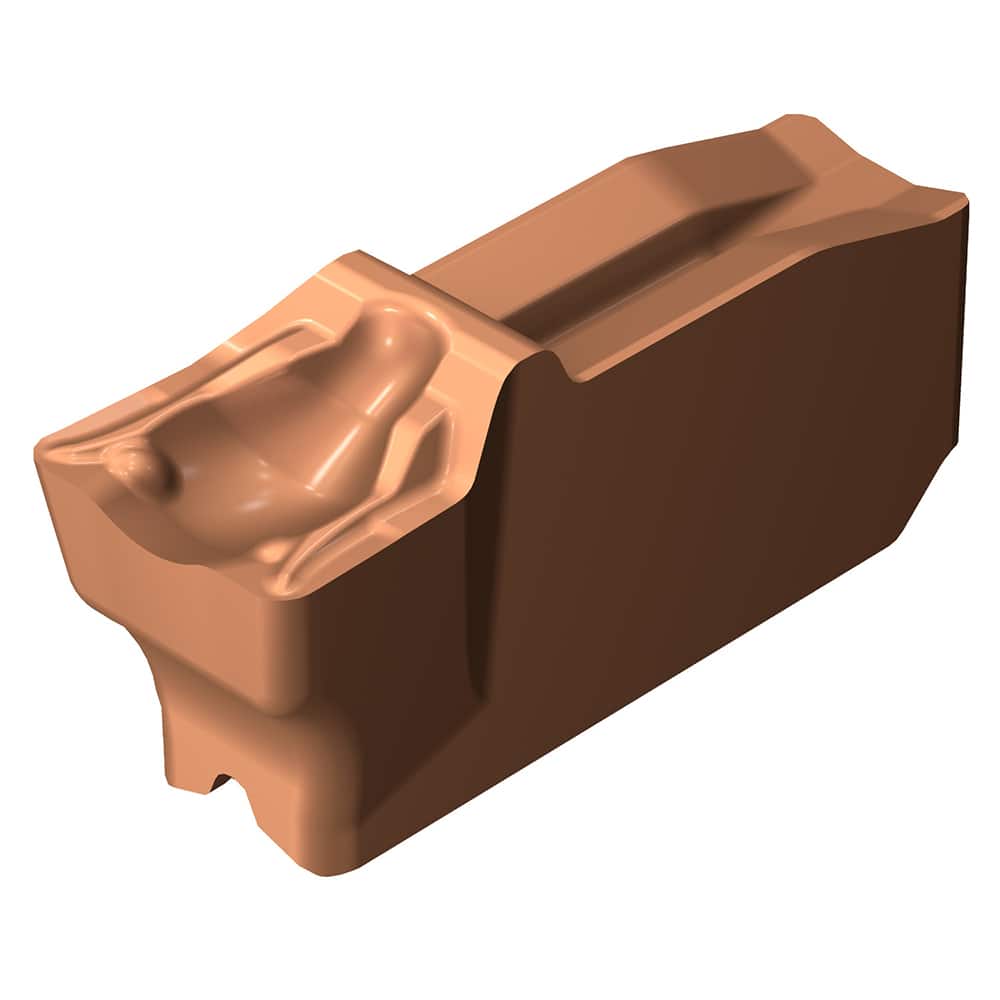

Grooving Insert: QI-NHTF 1145, Solid Carbide Neutral, 0.1575″ Cutting Width, 0.0906″ Max Depth, Series CoroCut QI
Item #: 17697905
Brand: Sandvik Coromant
Model #: 7937616
Product Specifications
| Insert Style | QI-N |
| Insert Size | H |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 1145 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (Decimal Inch) | 0.0906 |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Series | CoroCut QI |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Iso Code | QI-NH-0400-0003-TF 1145 |
| Relief Angle | 8 |
| Manufacturers Catalog Number | QI-NH-0400-0003-TF 1145 |
| Chip Breaker | TF |
| Insert Seat Size | H |
| Number Of Cutting Edges | 1 |
