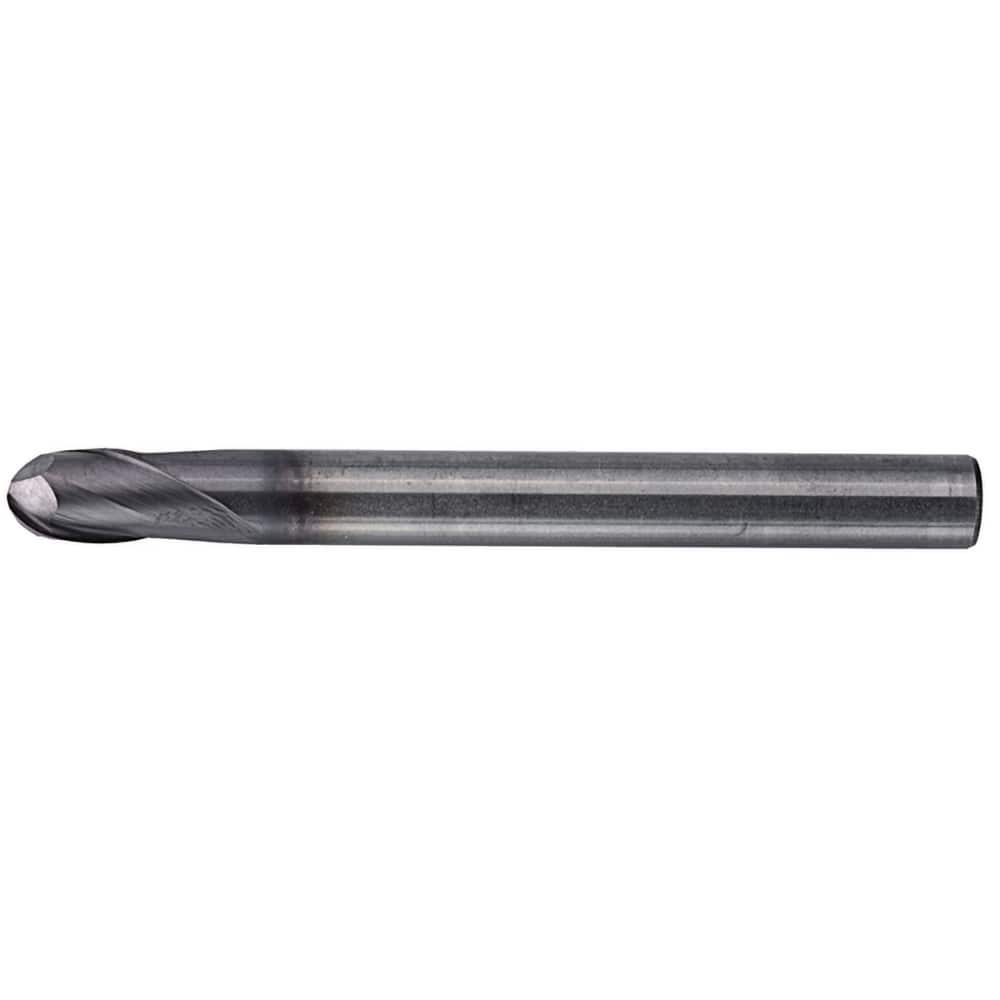

Ball End Mill: 0.0591″ Dia, 0.0591″ LOC, 2 Flute, Solid Carbide 40 mm OAL, 4 mm Shank Dia, 30 ° Helix, AlTiN Coated, Single End
Item #: 17695552
Brand: Kennametal
Model #: 6559900
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0591 |
| Mill Diameter (mm) | 1.50 |
| Length of Cut (mm) | 1.50 |
| End Mill Material | Solid Carbide |
| Helix Angle | 30 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.0500 to 0.1000 |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 4.00 |
| Nose Radius (Decimal Inch) | 0.0295 |
| Reach Length (mm) | 1.50 |
| Reach Length (Decimal Inch) | 0.0591 |
| Overall Length (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 40.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0591 |
| Manufacturers Catalog Number | F2AL0150AWL30 |
