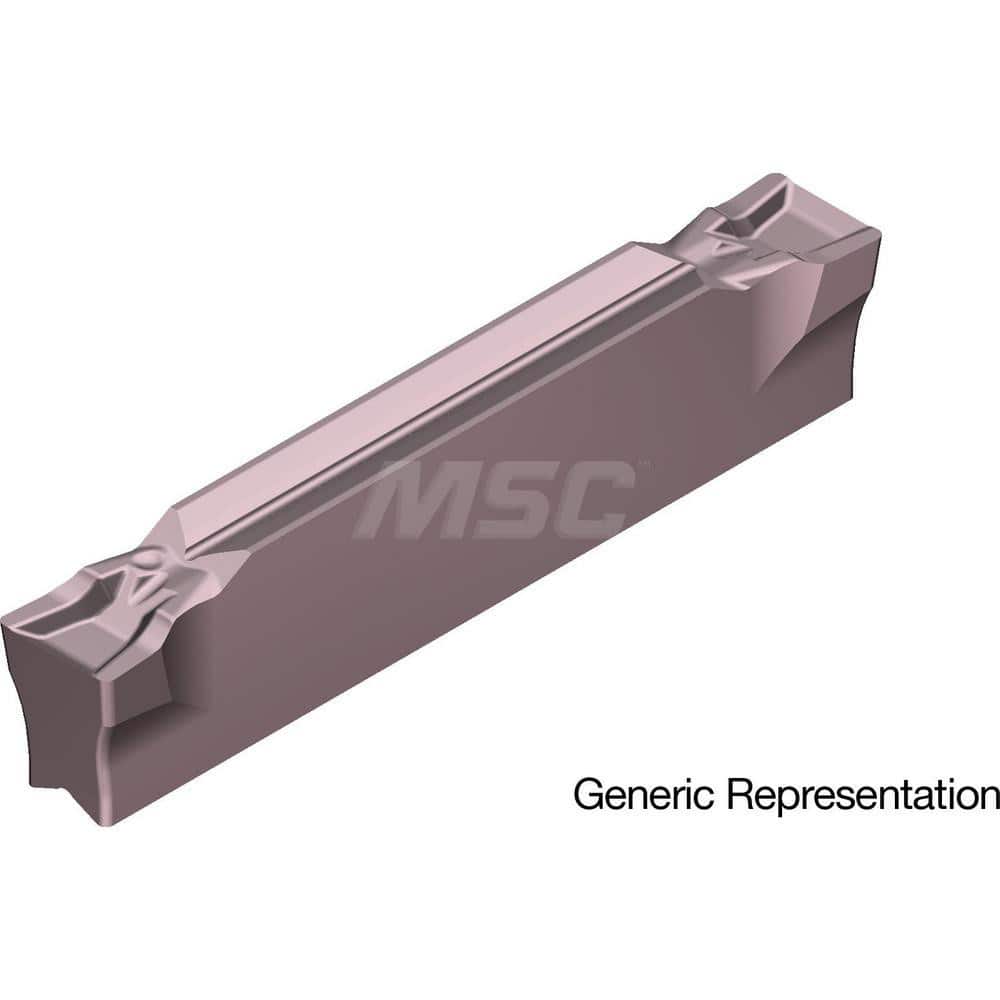

Grooving Insert: GCM8004GF AC530U, Solid Carbide Super ZX Finish, Neutral, 8 mm Cutting Width, 25 mm Max Depth, Series GND
Item #: 17662354
Brand: Sumitomo
Model #: 18HMAPA
Product Specifications
| Insert Style | GCM |
| Insert Size | 8004 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC530U |
| Cutting Width (mm) | 8.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 6.00 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Cutting Tool Application | Grooving |
| Series | GND |
| Coating Process | PVD |
| Relief Angle | 7 |
| Manufacturers Catalog Number | GCMN8004-GF-AC530U |
| Chip Breaker | GF |
| Coating/Finish | Super ZX |
| Number Of Cutting Edges | 2 |
| Insert Thickness | 6.00 |
