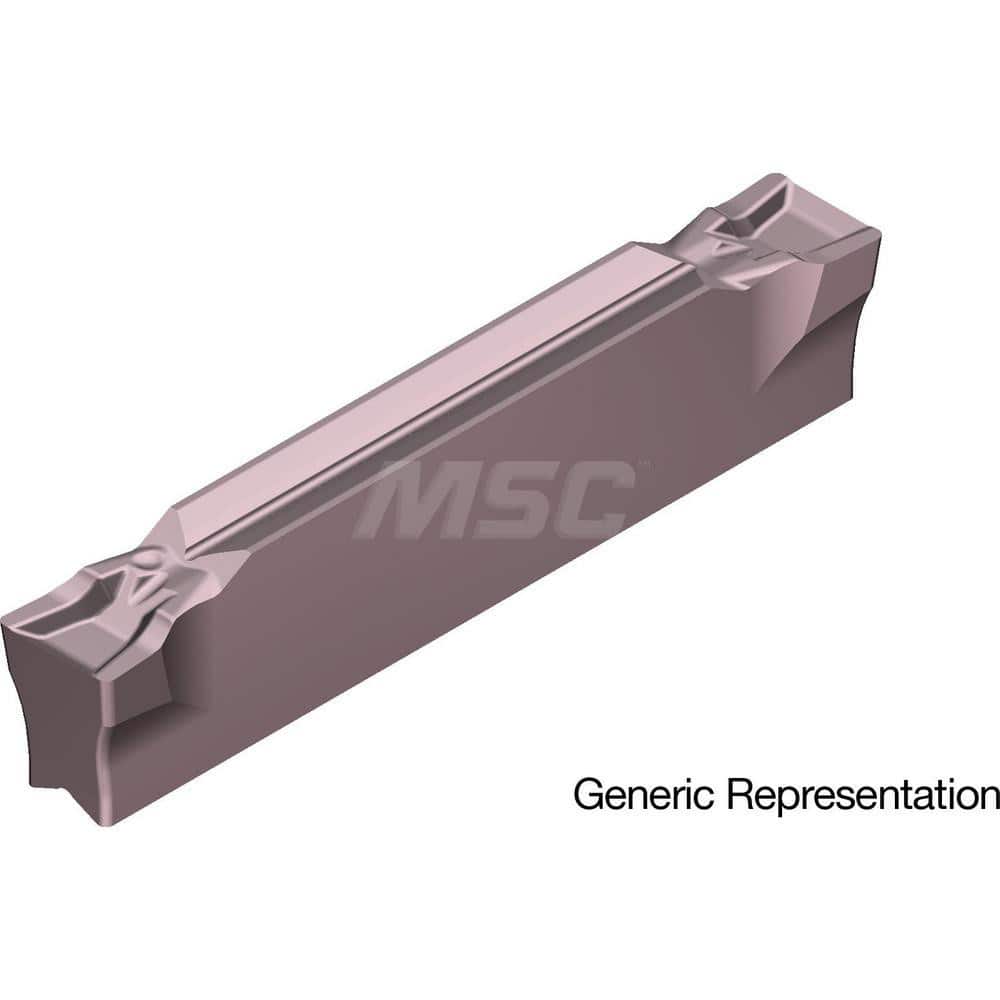

Grooving Insert: GCM125005GF AC530U, Solid Carbide Super ZX Finish, Neutral, 1.25 mm Cutting Width, 16 mm Max Depth, Series GND
Item #: 17661570
Brand: Sumitomo
Model #: 18HMANN
Product Specifications
| Insert Style | GCM |
| Insert Size | 125005 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC530U |
| Cutting Width (mm) | 1.25 |
| Maximum Depth of Cut (mm) | 16.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 3.20 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Cutting Tool Application | Grooving |
| Series | GND |
| Coating Process | PVD |
| Relief Angle | 9 |
| Manufacturers Catalog Number | GCMN125005-GF-AC530U |
| Chip Breaker | GF |
| Coating/Finish | Super ZX |
| Number Of Cutting Edges | 2 |
| Insert Thickness | 3.20 |
