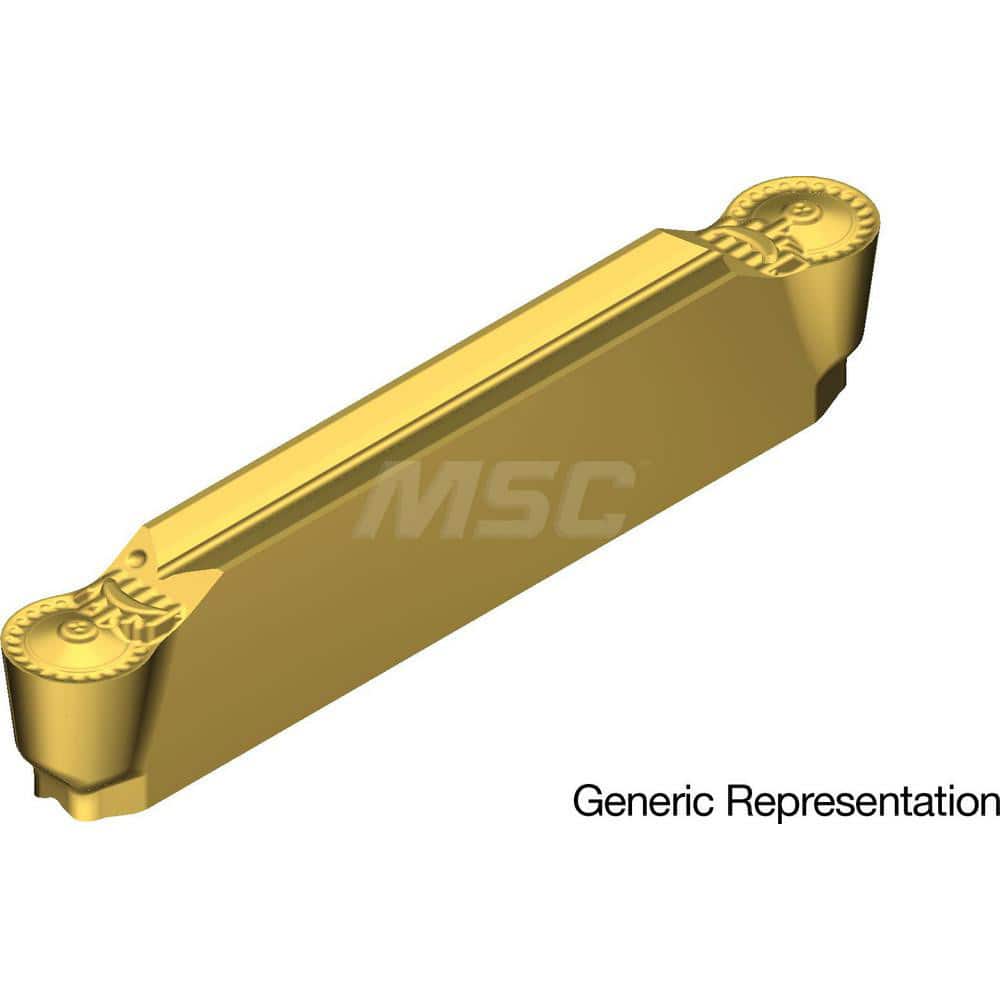

Grooving Insert: GCM4020RN AC425K, Solid Carbide Super FF Finish, Neutral, 4 mm Cutting Width, 25 mm Max Depth, Series GND
Item #: 17658717
Brand: Sumitomo
Model #: 186PAPD
Product Specifications
| Insert Style | GCM |
| Insert Size | 4020 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC425K |
| Cutting Width (mm) | 4.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.00 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Cutting Tool Application | Grooving |
| Series | GND |
| Coating Process | CVD |
| Relief Angle | 7 |
| Manufacturers Catalog Number | GCMN4020-RN-AC425K |
| Chip Breaker | RN |
| Coating/Finish | Super FF |
| Number Of Cutting Edges | 2 |
| Insert Thickness | 4.00 |
