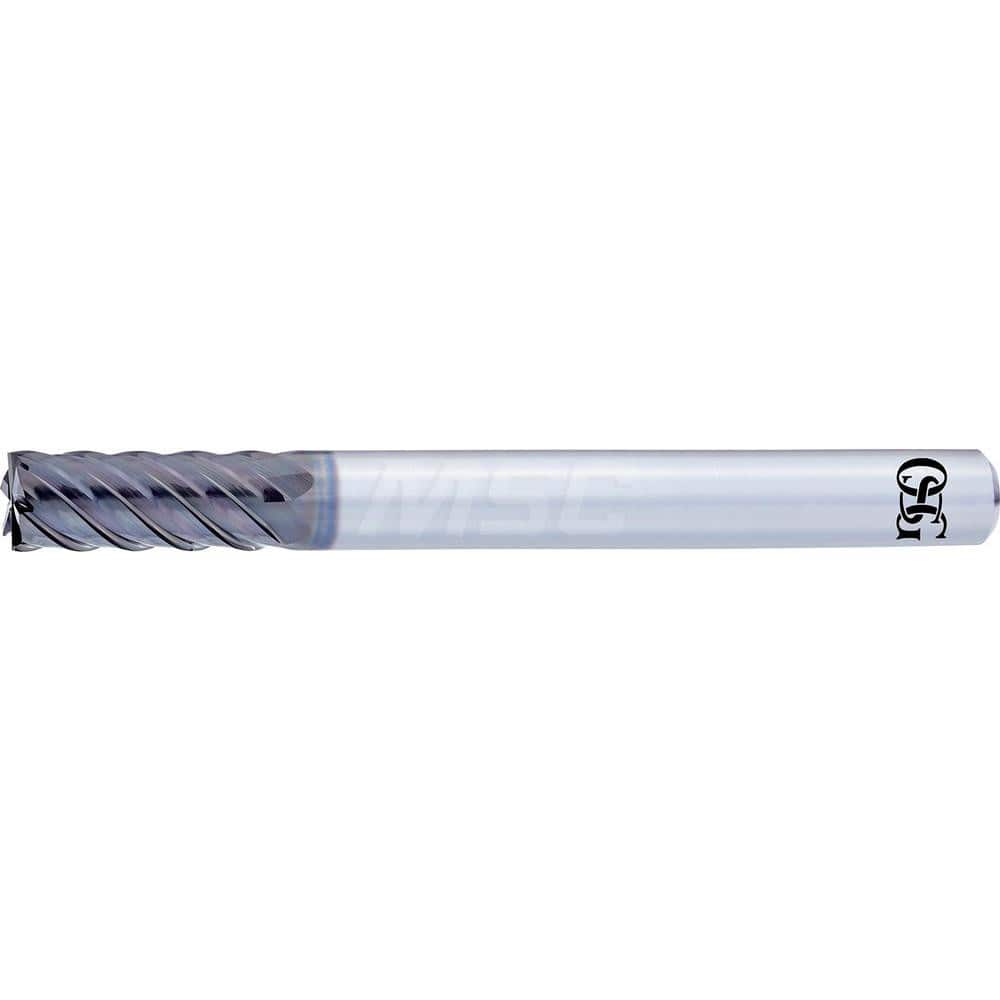

Square End Mill: 7/16'' Dia, 1-3/32'' LOC, 7/16'' Shank Dia, 3'' OAL, 6 Flutes, Solid Carbide Single End, DUROREY Finish, 43 ° Helix, Centercutting, RH Cut, RH Flute
Item #: 17647991
Brand: OSG
Model #: 84401223
Product Specifications
| Mill Diameter (Inch) | 7/16 |
| Mill Diameter (Decimal Inch) | 0.4375 |
| Number Of Flutes | 6 |
| Length of Cut (Inch) | 1-3/32 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 7/16 |
| Finish/Coating | DUROREY |
| Overall Length (Inch) | 3 |
| Helix Angle | 43 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 1.0930 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Overall Length (Decimal Inch) | 3.0000 |
| Flute Direction | Right Hand |
