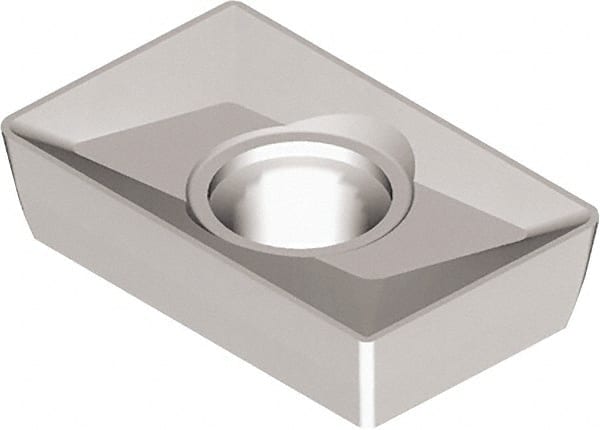

Kyocera - XPMT15T304 TN100M Cermet Milling Insert
Item #: 17522442
Brand: Kyocera
Model #: 8863010
Product Specifications
| Insert Style | XPMT |
| Insert Size | 15T304 |
| Material | Cermet |
| Manufacturer's Grade | TN100M |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.6071 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.40 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M; K; N |
| Hole Diameter (mm) | 4.0000 |
| Rake | Positive |
| Coating Process | Uncoated |
| Shape | Square |
| Insert Hand | Right Hand |
| Cutting Edge Style | Honed; Tough |
| Manufacturers Catalog Number | XPMT15T304TN100M |
| ISO Number | XPMT15T304 |
| Length of Cut (mm) | 15.4200 |
| Cutting Direction | Neutral |
