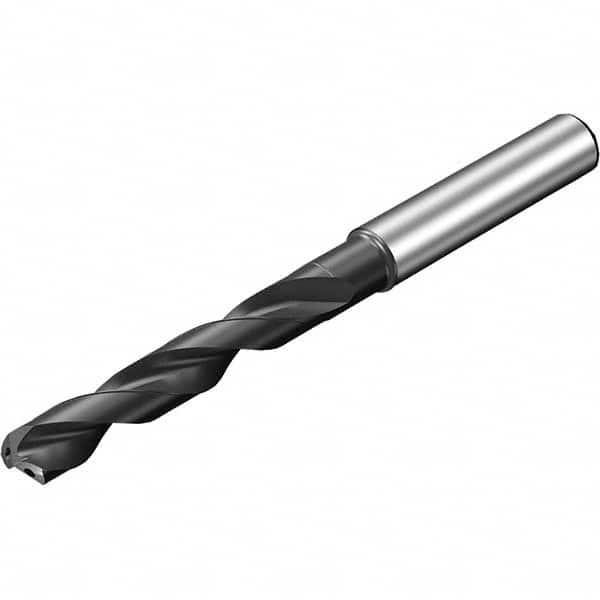

Jobber Length Drill Bit: 0.4055″ Dia, 140 °, Solid Carbide AlTiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 17402421
Brand: Sandvik Coromant
Model #: 7782513
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4055 |
| Drill Bit Size (mm) | 10.30 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlTiN |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 103.00 |
| Flute Length (mm) | 71.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 12.00 |
| Maximum Drilling Depth (mm) | 53.40 |
| Drill Point Length (mm) | 1.87 |
| Specification Number | DIN 6535L |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Drill Bit Size Range (mm) | 10.00 - 12.50 |
| Material Grade | 1210 |
| Specification Designation | DIN |
