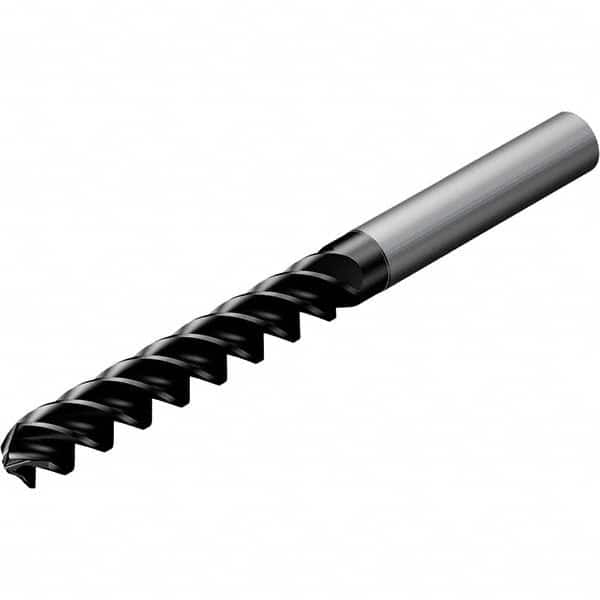

Jobber Length Drill Bit: 0.1299″ Dia, 90 °, Solid Carbide AlTiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 17402397
Brand: Sandvik Coromant
Model #: 7830390
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1299 |
| Drill Bit Size (mm) | 3.30 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlTiN |
| Drill Point Angle (Degrees) | 90 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 66.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.00 |
| Maximum Drilling Depth (mm) | 17.90 |
| Drill Point Length (mm) | 1.41 |
| Specification Number | DIN 6535L |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Drill Bit Size Range (mm) | 3.00 - 4.00 |
| Material Grade | O1AD |
| Specification Designation | DIN |
