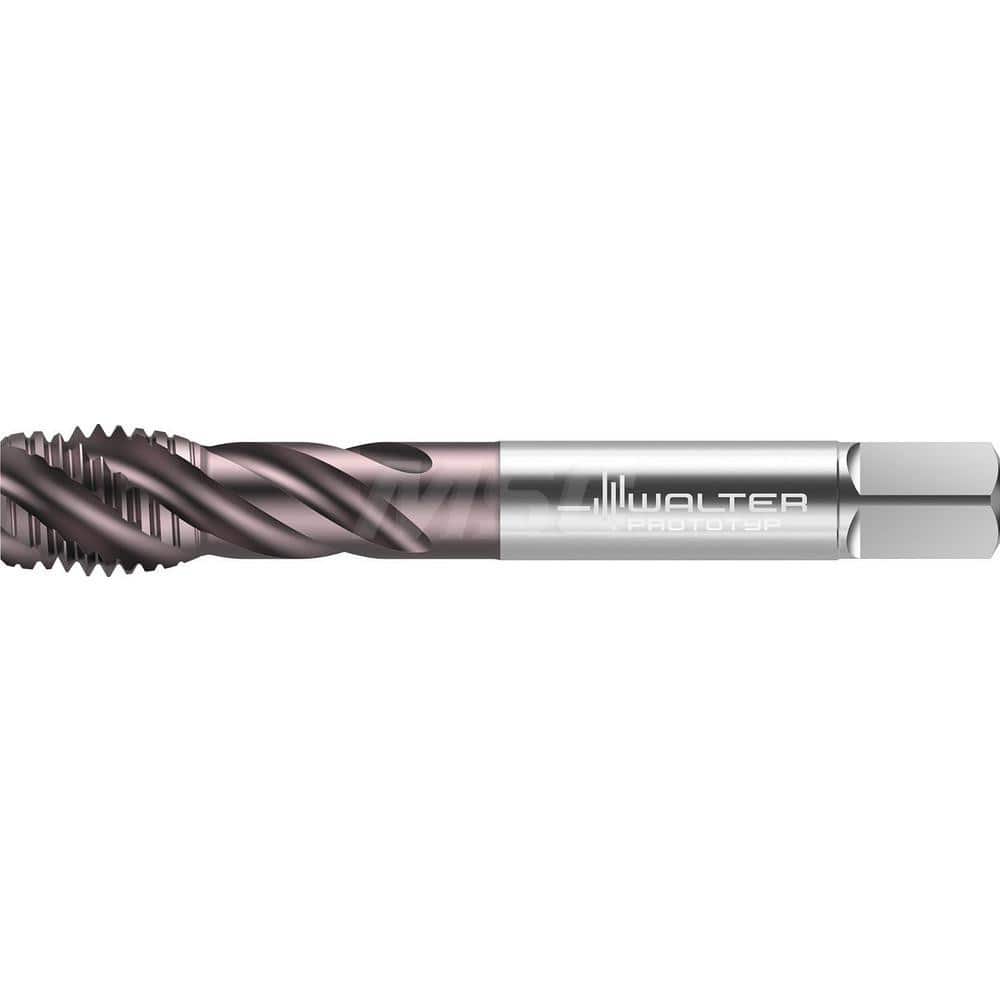

Spiral Flute Tap: 5/8-18, UNF, 4 Flute, Semi-Bottoming, High Speed Steel, TiAlN Finish Right Hand Flute, Right Hand Thread, H11, Series TC117
Item #: 17266735
Brand: Walter-Prototyp
Model #: 7849623
Product Specifications
| Material | High Speed Steel |
| Coating/Finish | TiAlN |
| Thread Size (Inch - 0 Decimals) | 5/8-18 |
| Thread Standard | UNF |
| Thread Limit | H11 |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 15.00 |
| Overall Length (mm) | 100.00 |
| Chamfer | Semi-Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 40 |
| Shank Diameter (mm) | 6.00 |
| Tapping Depth (mm) | 25.00 |
| Series | TC117 |
| Coolant Through | No |
| Number Of Flutes | 4 |
