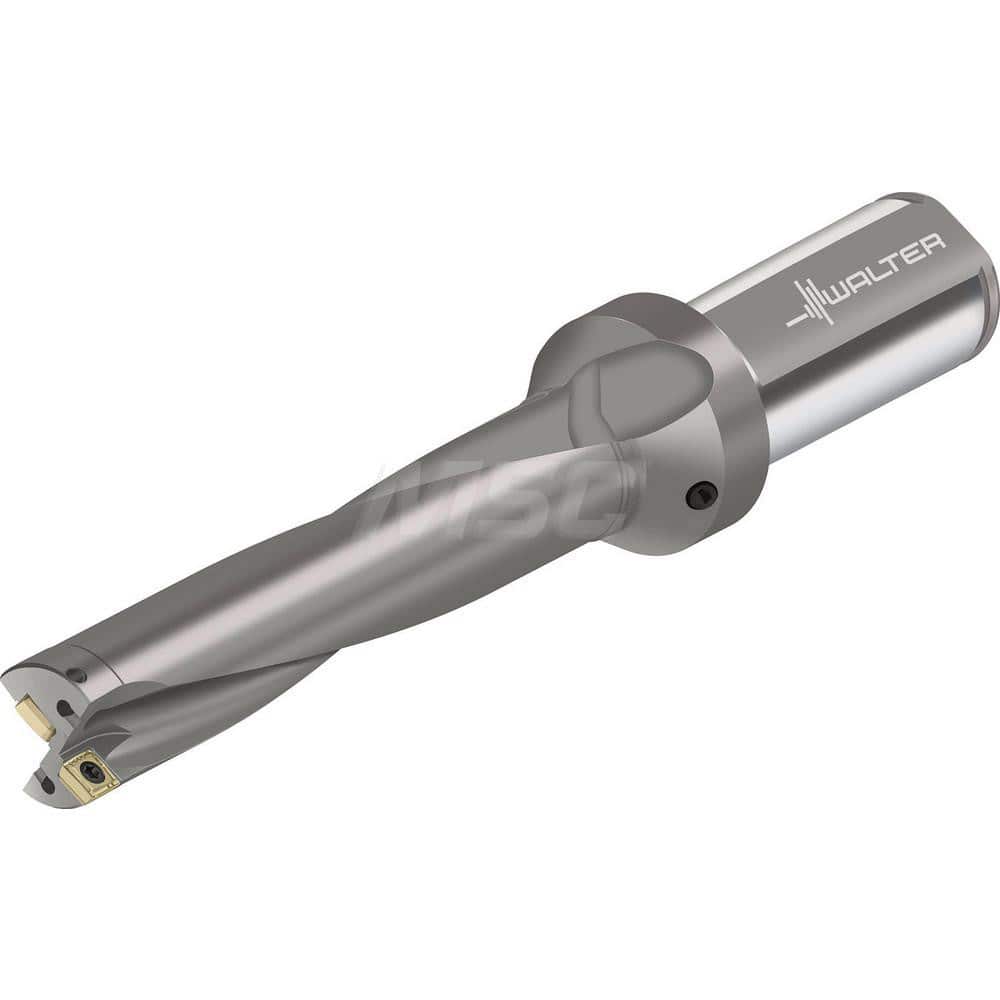

Indexable Insert Drills; Drill Style: D4120; Drill Diameter (Decimal Inch): 0.6870; Drill Diameter (mm): 17.45; Maximum Drill Depth (Decimal Inch): 3.4350; Maximum Drill Depth (mm): 87.00; Shank Type: Straight-Cylindrical; Shank Diameter (Inch): 1; Shank
Item #: 17224916
Brand: Walter
Model #: 6929693
Product Specifications
| Drill Style | D4120 |
| Drill Diameter (Decimal Inch) | 0.6870 |
| Drill Diameter (mm) | 17.45 |
| Maximum Drill Depth (Decimal Inch) | 3.4350 |
| Maximum Drill Depth (mm) | 87.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 25.40 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | P484 |
| Drill Depth by Diameter Ratio | 5xD |
| Flute Length (Decimal Inch) | 4.2130 |
| Flute Length (mm) | 107.00 |
| Body Length | 112.34 |
| Body Length (Decimal Inch) | 4.4230 |
| Shank Length (Decimal Inch) | 2.2810 |
| Shank Length (mm) | 57.94 |
| Overall Length/Projection (Decimal Inch) | 6.7160 |
| Overall Length/Projection (mm) | 170.59 |
| Coolant Through | Yes |
