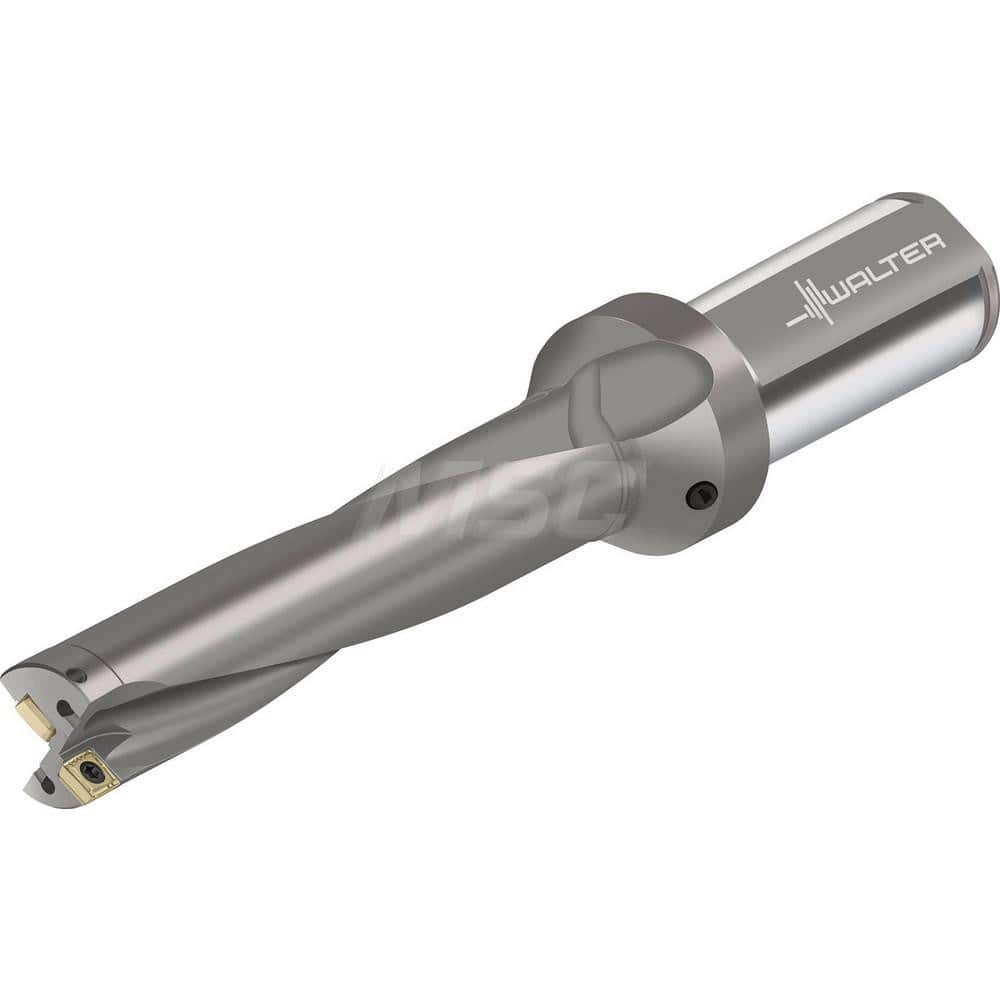

Indexable Insert Drills; Drill Style: D4120; Drill Diameter (Decimal Inch): 0.7030; Drill Diameter (mm): 17.86; Maximum Drill Depth (Decimal Inch): 3.5150; Maximum Drill Depth (mm): 89.00; Shank Type: Straight-Cylindrical; Shank Diameter (Inch): 1; Shank
Item #: 17224890
Brand: Walter
Model #: 6929694
Product Specifications
| Drill Style | D4120 |
| Drill Diameter (Decimal Inch) | 0.7030 |
| Drill Diameter (mm) | 17.86 |
| Maximum Drill Depth (Decimal Inch) | 3.5150 |
| Maximum Drill Depth (mm) | 89.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 25.40 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | P484 |
| Drill Depth by Diameter Ratio | 5xD |
| Flute Length (Decimal Inch) | 4.2870 |
| Flute Length (mm) | 108.90 |
| Body Length | 114.37 |
| Body Length (Decimal Inch) | 4.5030 |
| Shank Length (Decimal Inch) | 2.2810 |
| Shank Length (mm) | 57.94 |
| Overall Length/Projection (Decimal Inch) | 6.7960 |
| Overall Length/Projection (mm) | 172.62 |
| Coolant Through | Yes |
