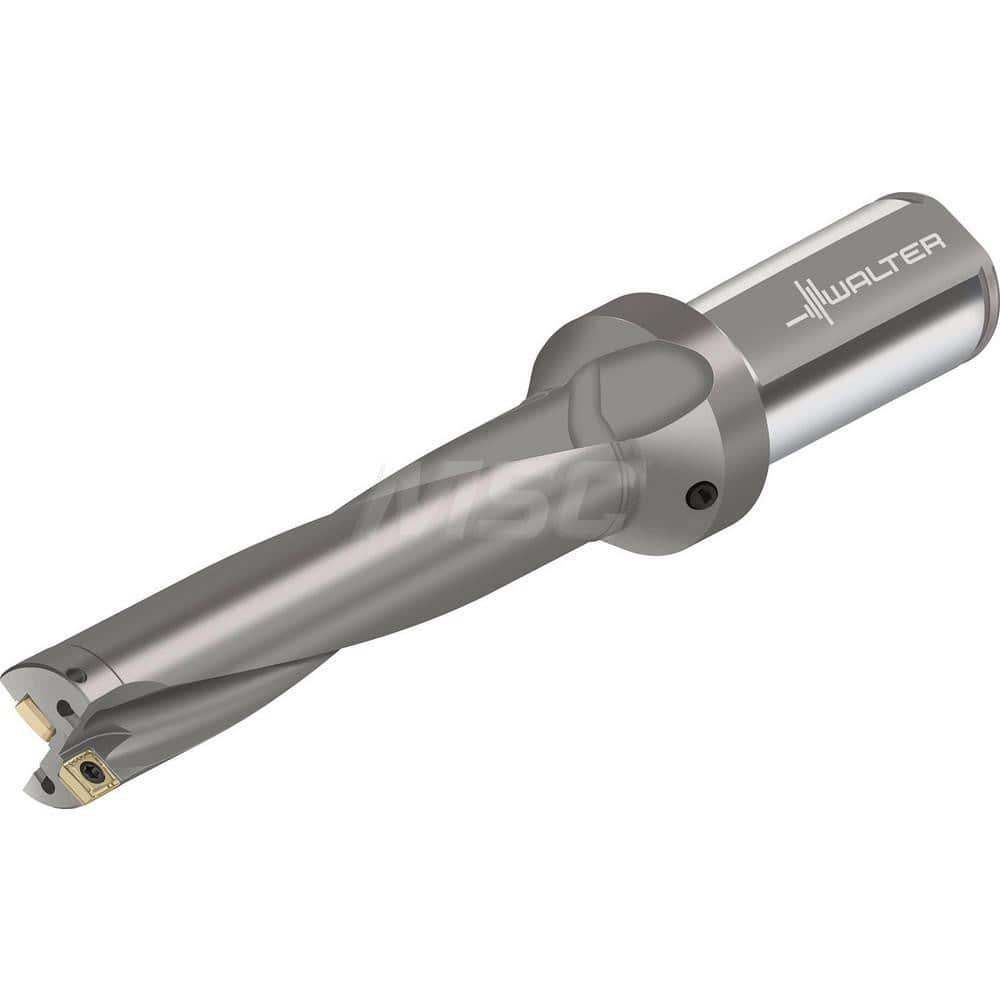

Indexable Insert Drills; Drill Style: D4120; Drill Diameter (Decimal Inch): 0.8430; Drill Diameter (mm): 21.41; Maximum Drill Depth (Decimal Inch): 4.2150; Maximum Drill Depth (mm): 107.00; Shank Type: Straight-Cylindrical; Shank Diameter (Inch): 1; Shank
Item #: 17224643
Brand: Walter
Model #: 6929700
Product Specifications
| Drill Style | D4120 |
| Drill Diameter (Decimal Inch) | 0.8430 |
| Drill Diameter (mm) | 21.41 |
| Maximum Drill Depth (Decimal Inch) | 4.2150 |
| Maximum Drill Depth (mm) | 107.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 25.40 |
| Drill Diameter Range (Decimal Inch) | 0.7500 to 1.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | P484 |
| Drill Depth by Diameter Ratio | 5xD |
| Flute Length (Decimal Inch) | 5.0080 |
| Flute Length (mm) | 127.20 |
| Body Length | 132.13 |
| Body Length (Decimal Inch) | 5.2020 |
| Shank Length (Decimal Inch) | 2.2810 |
| Shank Length (mm) | 57.94 |
| Overall Length/Projection (Decimal Inch) | 7.4960 |
| Overall Length/Projection (mm) | 190.40 |
| Coolant Through | Yes |
