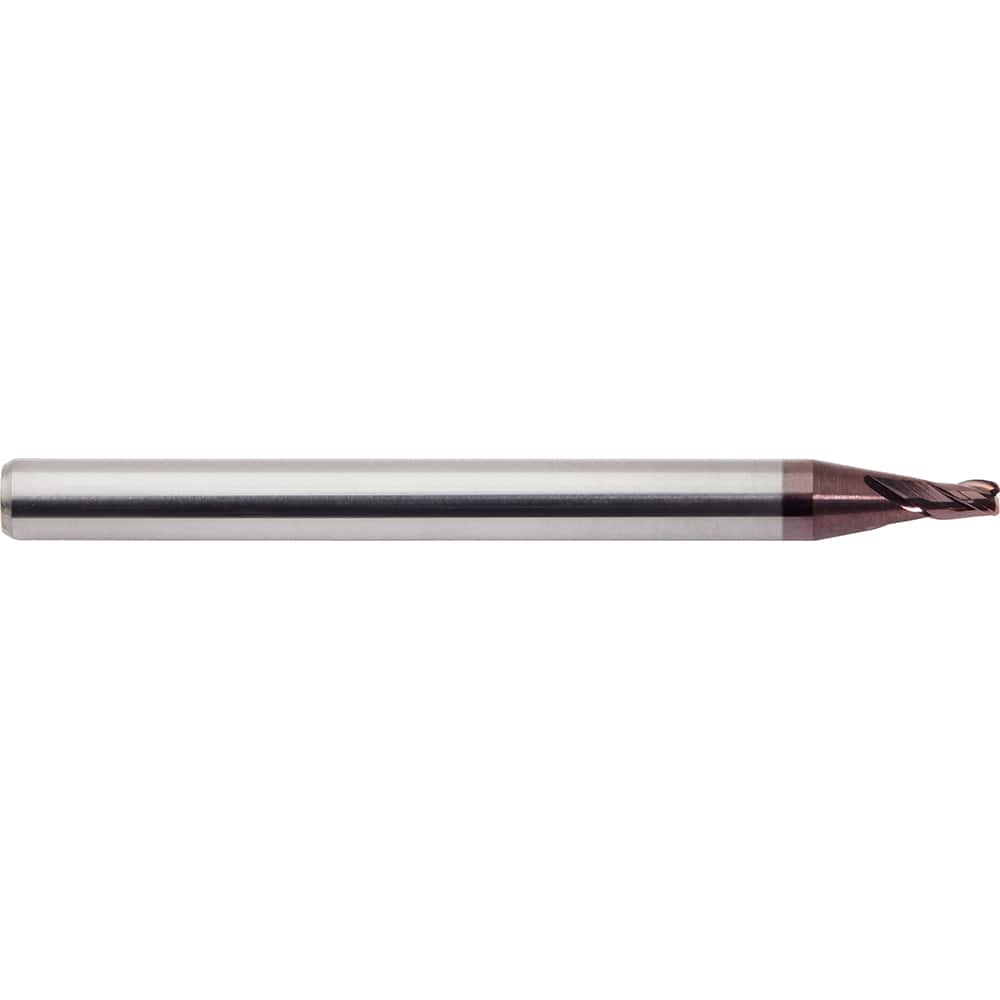

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/64 ; Mill Diameter (Decimal Inch): 0.0156 ; End Type: Corner Radius ; Corner Radius (Inch): 0.003 ; Corner Radius (Decimal Inch): 0.003 ; Number of Flutes: 3
Item #: 17112277
Brand: M.A. Ford
Model #: 3MVS0156R.003AH
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/64 ; Mill Diameter (Decimal Inch): 0.0156 ; End Type: Corner Radius ; Corner Radius (Inch): 0.003 ; Corner Radius (Decimal Inch): 0.003 ; Number of Flutes: 3
| Mill Diameter (Inch) | 1/64 |
| Mill Diameter (Decimal Inch) | 0.0156 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 0.003 |
| Corner Radius (Decimal Inch) | 0.003 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | ALtima? 52 |
| Length of Cut (Inch) | .023 |
| Length of Cut (Decimal Inch) | 0.0230 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 31; 35 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Material Grade | Solid Carbide |
| Single or Double End | Single |
| Length Type | Stub |
| Centercutting | Yes |
| Flute Direction | Right Hand |
