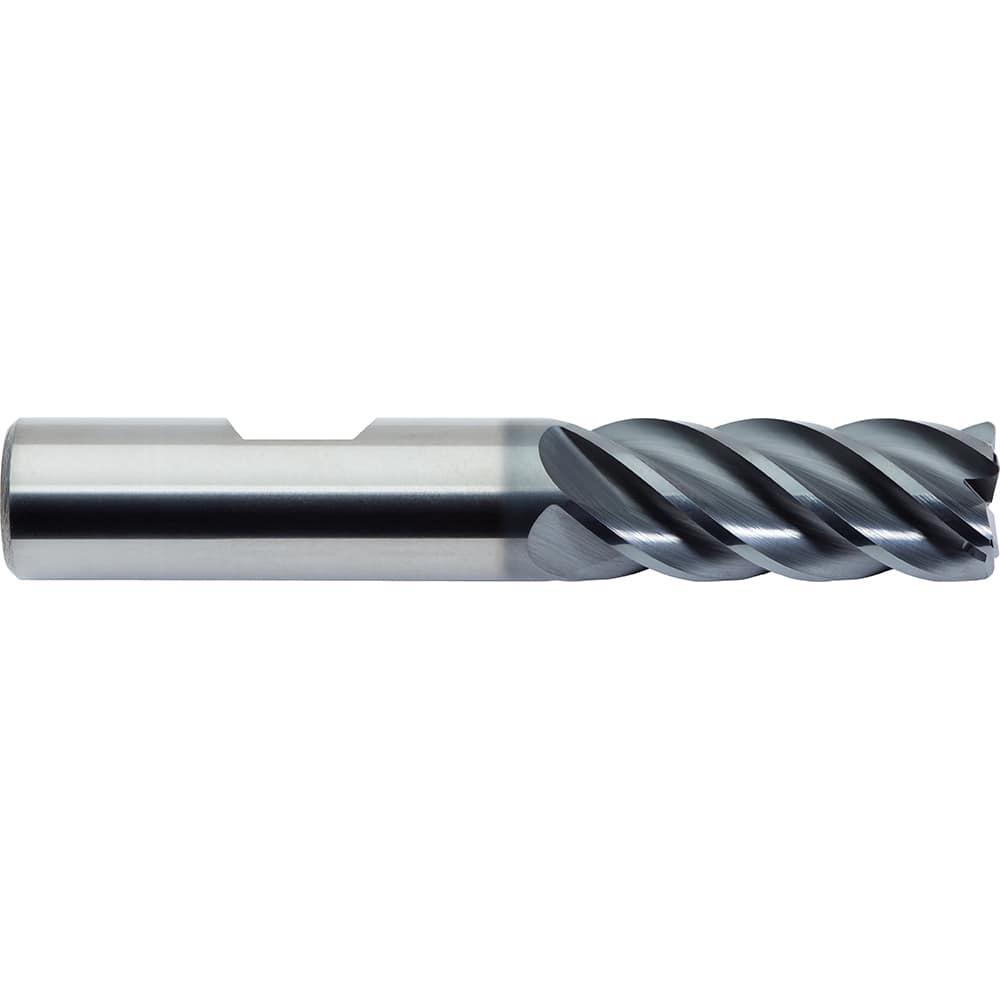

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Radius ; Corner Radius (Inch): 0.19 ; Corner Radius (Decimal Inch): 0.19 ; Chamfer Width (Decimal Inch): 0.2500
Item #: 17109596
Brand: M.A. Ford
Model #: 27862509B
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Radius ; Corner Radius (Inch): 0.19 ; Corner Radius (Decimal Inch): 0.19 ; Chamfer Width (Decimal Inch): 0.2500
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 0.19 |
| Corner Radius (Decimal Inch) | 0.19 |
| Chamfer Width (Decimal Inch) | 0.2500 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | ALtima? Blaze |
| Length of Cut (Inch) | 3/4 |
| Length of Cut (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 3 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 40 |
| Variable Index | Yes |
| Variable Helix | No |
| Material Grade | Solid Carbide |
| Single or Double End | Single |
| Length Type | Standard |
| Centercutting | Yes |
| Flute Direction | Right Hand |
