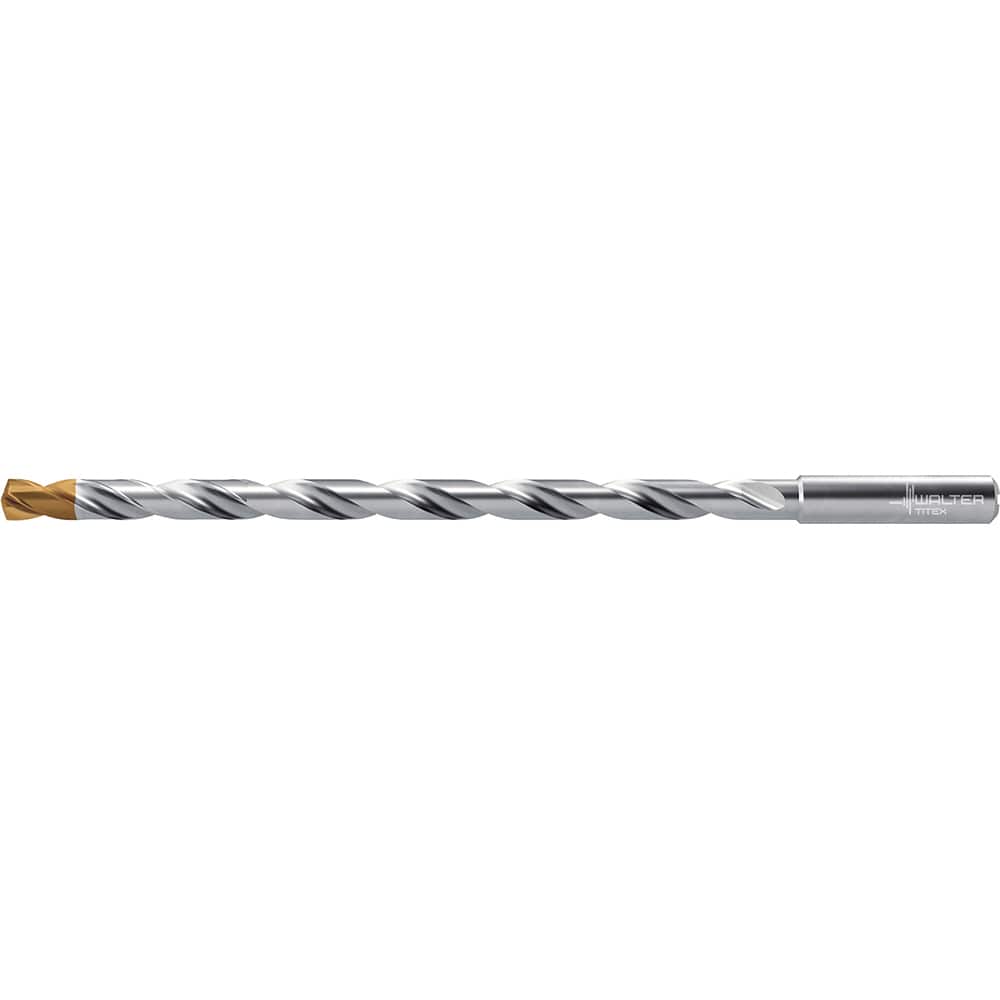

Extra Length Drill Bit: 0.375″ Dia, 140 °, Solid Carbide TiSiAlCrN Finish, 7.087″ Flute Length, 8.819″ OAL, Straight-Cylindrical Shank, Series DC160-16-A1
Item #: 16984676
Brand: Walter-Titex
Model #: 7684272
Product Specifications
| Drill Bit Size (Inch) | 3/8 |
| Drill Bit Size (mm) | 9.53 |
| Overall Length (mm) | 224.00 |
| Flute Length (mm) | 180.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiSiAlCrN |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Series | DC160-16-A1 |
| Cutting Direction | Right Hand |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Drill Bit Diameter Tolerance | h7 |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Alloy; Titanium Alloy |
| Primary Workpiece Material Code | P; S; K; N |
| Secondary Workpiece Material | Glass; Graphite |
| Secondary Workpiece Material Code | H; M; O |
| Standards | ISO; ANSI |
| Drill Bit Size (Decimal Inch) | 0.3750 |
| Drill Point Length (mm) | 1.73 |
| Drill Point Length (Decimal Inch) | 0.0680 |
| Overall Length (Decimal Inch) | 8.8190 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Shank Diameter (mm) | 10.00 |
| Shank Length (Decimal Inch) | 1.5750 |
| Shank Length (mm) | 40.00 |
| Flute Length (Decimal Inch) | 7.0870 |
| Flute By Diameter Ratio | 16xD |
| Maximum Drilling Depth (Decimal Inch) | 6.4960 |
| Maximum Drilling Depth (mm) | 165.00 |
