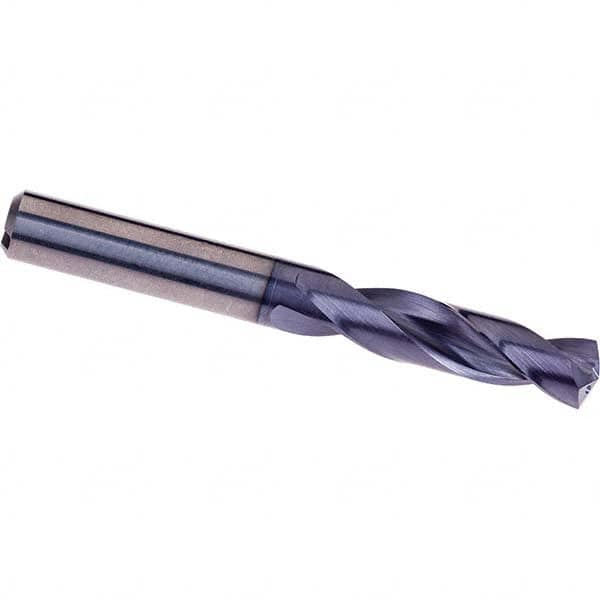

Screw Machine Length Drill Bit: 0.1875″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series DIN 6537 K
Item #: 16952392
Brand: DORMER
Model #: 7625124
Product Specifications
| Drill Bit Size (Inch) | 3/16 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 6.00 |
| Series | DIN 6537 K |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | 0 to -8 ?m |
| Standards | DIN 6537 K |
| Flute Length (mm) | 28.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
