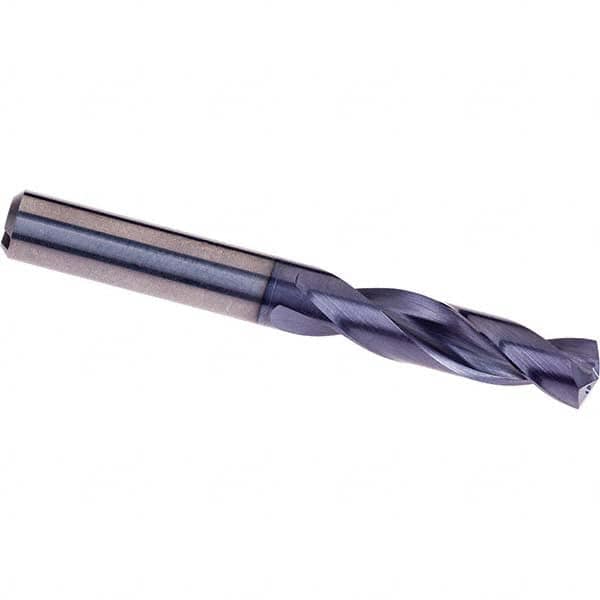

Screw Machine Length Drill Bit: 0.2813″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 16950602
Brand: DORMER
Model #: 7625158
Product Specifications
| Drill Bit Size (Inch) | 9/32 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Drill Bit Size (Decimal Inch) | 0.2813 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.00 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 41.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
