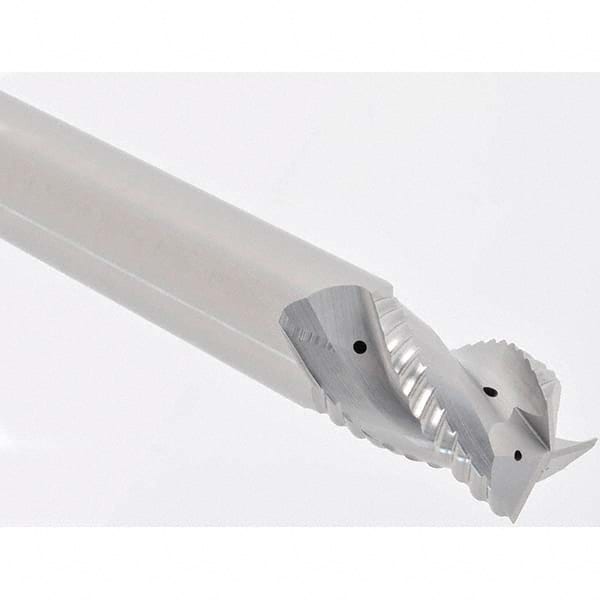

Corner Radius End Mill: 0.7874″ Dia, 1.378″ LOC, 3 Flutes, Solid Carbide 38 ° Helix, TiB2 Coated, Corner Radius End, Centercutting, Series S-Carb APR 43APR-3
Item #: 16906711
Brand: SGS
Model #: 44995
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7874 |
| Mill Diameter (mm) | 20.00 |
| Corner Radius (mm) | 3.00 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | 38 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (mm) | 20.00 |
| Neck Diameter (mm) | 19.00 |
| Overall Length (mm) | 106.00 |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Corner Radius Tolerance | ?0.05000 mm |
| Mill Diameter Tolerance | +0.010000 to -0.100000 mm |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | +0.0600 to -0.0690 in |
| Primary Workpiece Material | Non-Ferrous Metal |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | S-Carb APR 43APR-3 |
| Product Service Code | 3455 |
| Single Or Double End | Single |
| Coating/Finish | TiB2 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.3780 |
