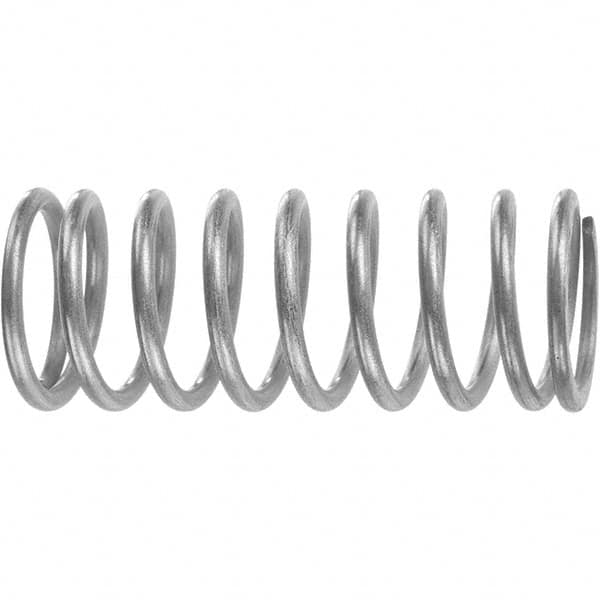

Compression Spring: 0.94″ OD, 9.5″ Free Length 0.177″ Wire Dia, 195.538 lb Max Load, 86.623 lb/in Spring Rate, Music Wire
Item #: 16898884
Brand: Associated Spring Raymond
Model #: C0940-177-9500M
Product Specifications
| Type | Compression |
| Outside Diameter (Decimal Inch) | 0.9400 |
| Free Length (Decimal Inch) | 9.5 in; 9.5 mm |
| Free Length (mm) | 9.5 in; 9.5 mm |
| Free Length | 9.5 in; 9.5 mm |
| Spring Rate Pounds per Inch | 86.6230 |
| Spring Rate Newtons | 86.6230 |
| Maximum Work Load (N) | 195.538 lb |
| Maximum Work Load | 195.5380; 195.538 lb |
| Solid Height | 7.187 |
| Spring Rate | 86.6230 |
| Material | Music Wire |
| Maximum Load | 195.538 lb |
| Wire Size (Decimal Inch) | 0.1770 |
