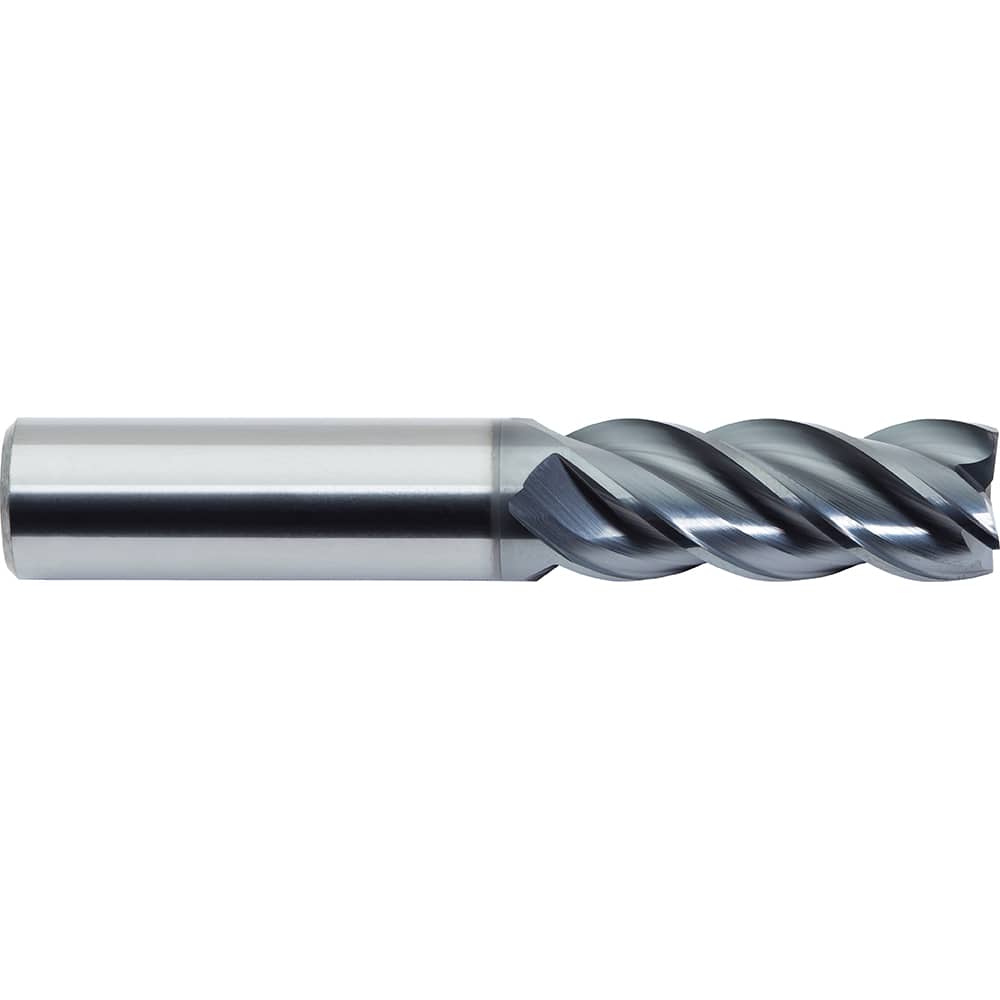

M.A. Ford - Square End Mills; Mill Diameter (mm): 20.00 ; Mill Diameter (Decimal Inch): 0.7874 ; Number of Flutes: 4 ; Length of Cut (mm): 38.0000 ; Length of Cut (Inch): 1 ; Length of Cut (Decimal Inch): 1.4961
Item #: 16752297
Brand: M.A. Ford
Model #: 277 2000B
Product Specifications
Square End Mills; Mill Diameter (mm): 20.00 ; Mill Diameter (Decimal Inch): 0.7874 ; Number of Flutes: 4 ; Length of Cut (mm): 38.0000 ; Length of Cut (Inch): 1 ; Length of Cut (Decimal Inch): 1.4961
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 38.0000 |
| Length of Cut (Inch) | 1 |
| Length of Cut (Decimal Inch) | 1.4961 |
| Material | Solid Carbide |
| Finish/Coating | ALtima? Blaze |
| Shank Diameter (mm) | 20.0000 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Single or Double End | Single |
| Overall Length (mm) | 104.0000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 38; 41; Variable |
| Variable Helix | Yes |
| Variable Index | Yes |
| Flute Type | Helical |
| Length Type | Standard |
| Helix Style | Medium High |
| Material Grade | Solid Carbide |
| Chipbreaker | No |
