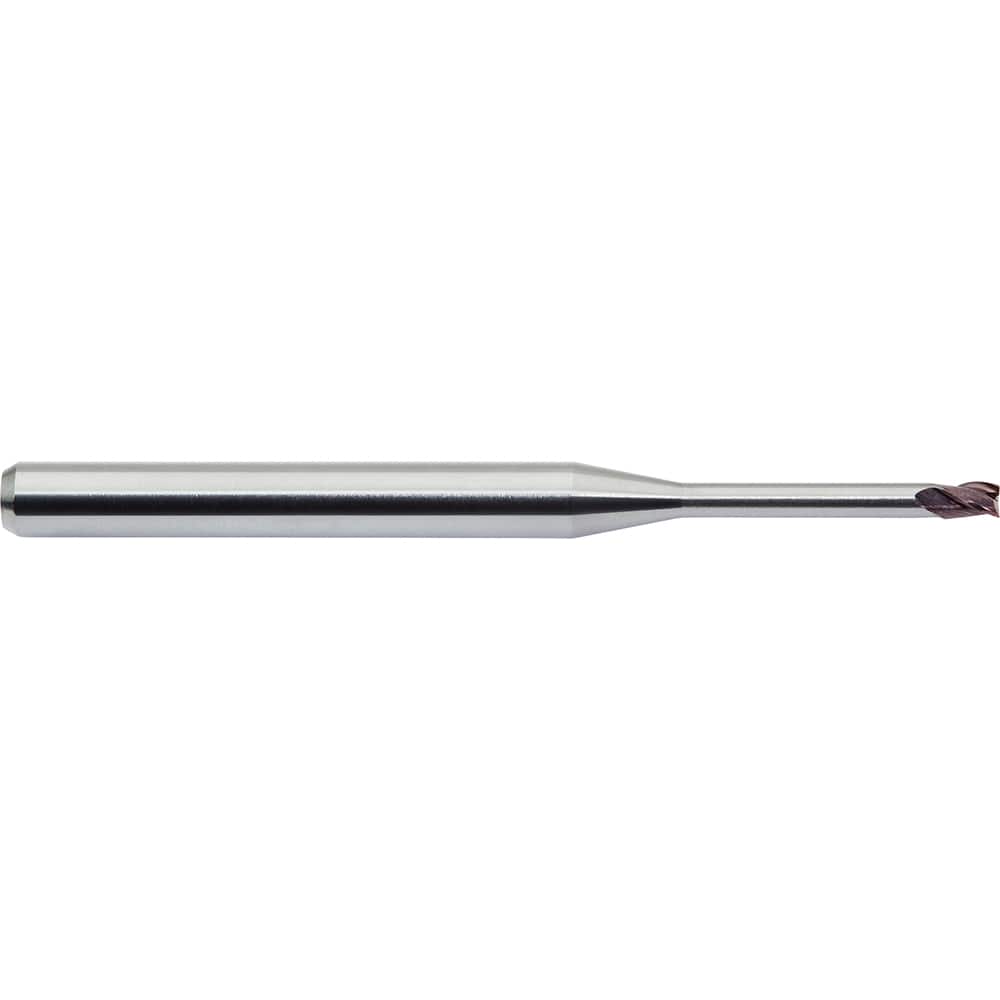

M.A. Ford - Square End Mills; Mill Diameter (Inch): 5/64 ; Mill Diameter (Decimal Inch): 0.0781 ; Number of Flutes: 3 ; Length of Cut (Inch): .117 ; Length of Cut (Decimal Inch): 0.1170 ; Material: Solid Carbide
Item #: 16751117
Brand: M.A. Ford
Model #: 3MVS0781N8AH
Product Specifications
Square End Mills; Mill Diameter (Inch): 5/64 ; Mill Diameter (Decimal Inch): 0.0781 ; Number of Flutes: 3 ; Length of Cut (Inch): .117 ; Length of Cut (Decimal Inch): 0.1170 ; Material: Solid Carbide
| Mill Diameter (Inch) | 5/64 |
| Mill Diameter (Decimal Inch) | 0.0781 |
| Number of Flutes | 3 |
| Length of Cut (Inch) | .117 |
| Length of Cut (Decimal Inch) | 0.1170 |
| Material | Solid Carbide |
| Finish/Coating | ALtima? 52 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Single or Double End | Single |
| Overall Length (Inch) | 2-1/2 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 31; 35; Variable |
| Variable Helix | Yes |
| Variable Index | Yes |
| Flute Type | Helical |
| Length Type | Stub |
| Helix Style | Medium |
| Material Grade | Solid Carbide |
| Chipbreaker | No |
