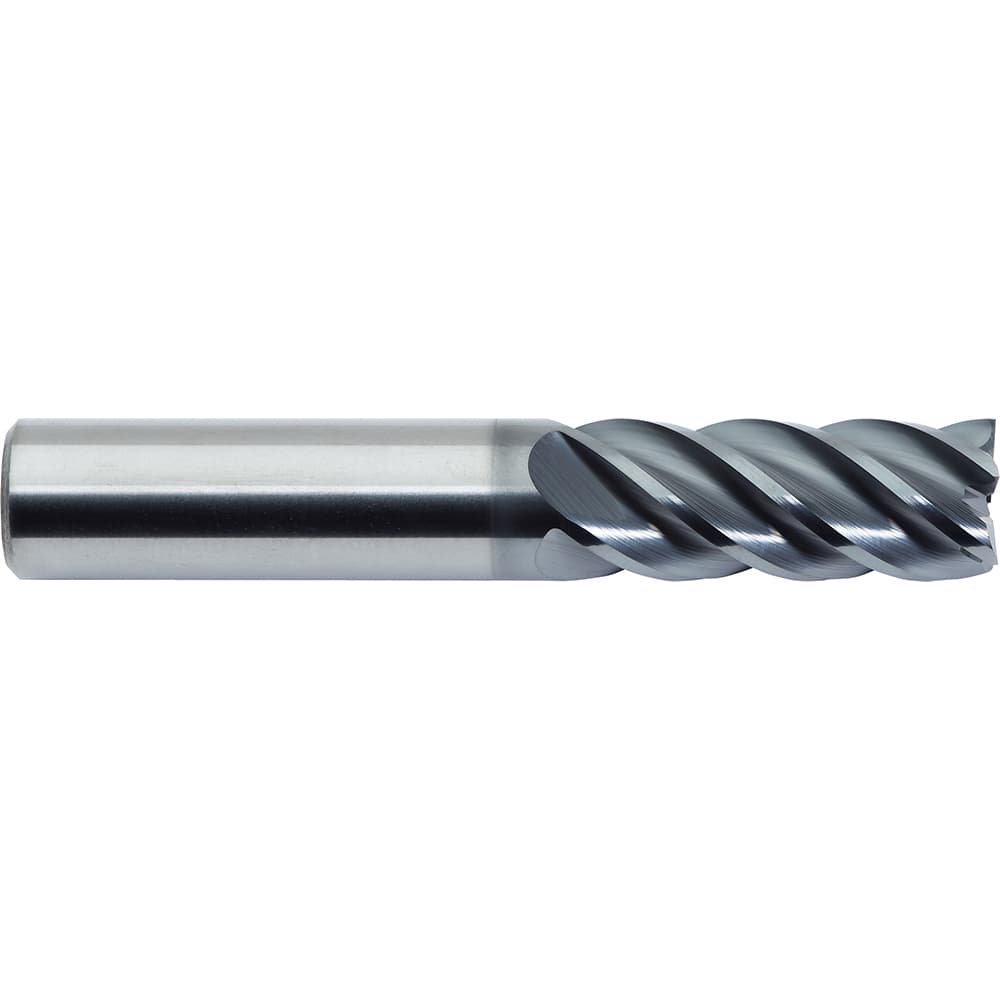

M.A. Ford - Square End Mills; Mill Diameter (Inch): 1/8 ; Mill Diameter (Decimal Inch): 0.1250 ; Number of Flutes: 5 ; Length of Cut (Inch): 1/4 ; Length of Cut (Decimal Inch): 0.2500 ; Material: Solid Carbide
Item #: 16751083
Brand: M.A. Ford
Model #: 27812500B
Product Specifications
Square End Mills; Mill Diameter (Inch): 1/8 ; Mill Diameter (Decimal Inch): 0.1250 ; Number of Flutes: 5 ; Length of Cut (Inch): 1/4 ; Length of Cut (Decimal Inch): 0.2500 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number of Flutes | 5 |
| Length of Cut (Inch) | 1/4 |
| Length of Cut (Decimal Inch) | 0.2500 |
| Material | Solid Carbide |
| Finish/Coating | ALtima? Blaze |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Single or Double End | Single |
| Overall Length (Inch) | 1-1/2 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 40 |
| Variable Helix | No |
| Variable Index | No |
| Flute Type | Helical |
| Length Type | Standard |
| Helix Style | Medium High |
| Material Grade | Solid Carbide |
| Chipbreaker | No |
