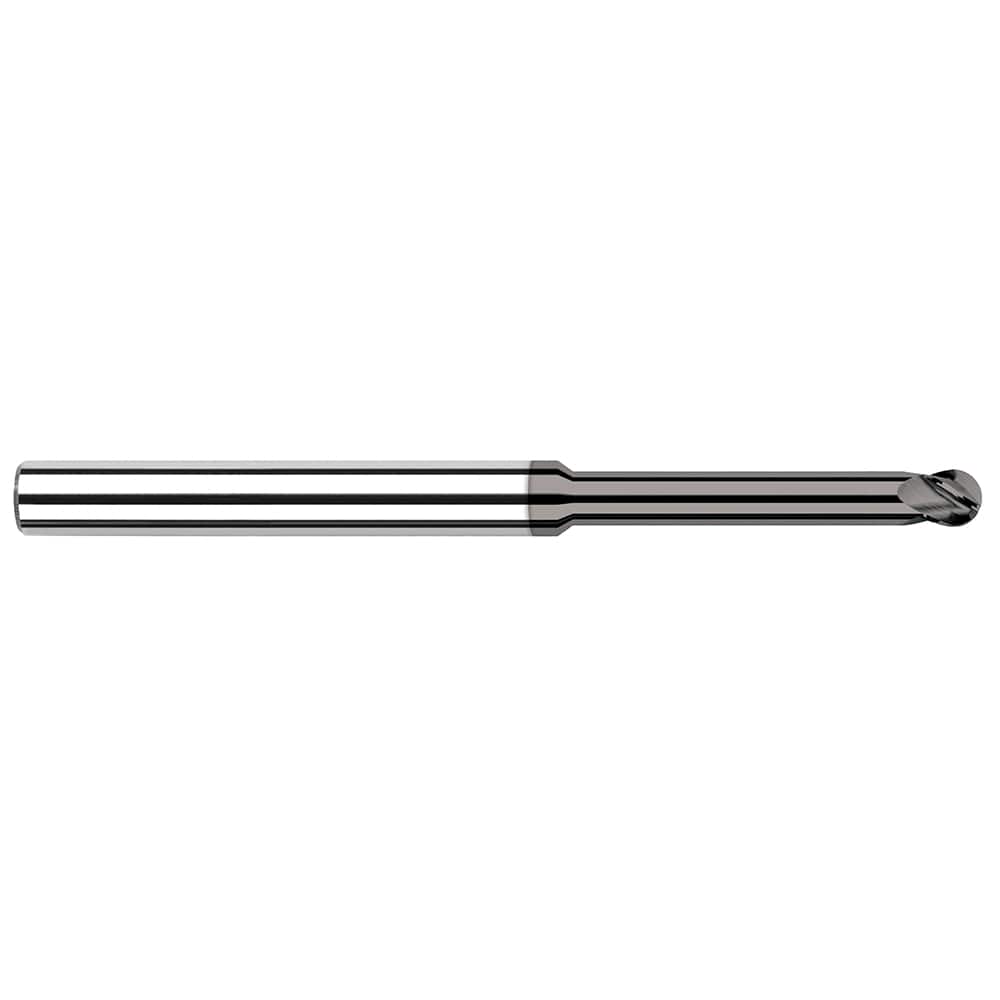

Harvey Tool - 1/32", 3/64" LOC, 1/8" Shank Diam, 4 Flute Solid Carbide Ball End Mill
Item #: 16731325
Brand: Harvey Tool
Model #: 794931
Product Specifications
| Mill Diameter (mm) | 0.80 |
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0310 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 1.2000 |
| Length of Cut (Inch) | 3/64 |
| Length of Cut (Decimal Inch) | 0.0470 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Finish/Coating | CVD |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Index | No |
| Variable Helix | No |
| Reach Length (Inch) | 7/32 |
| Reach Length (Decimal Inch) | 0.2180 |
| Series/List | Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Ball - Long Reach, Stub Flute |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
