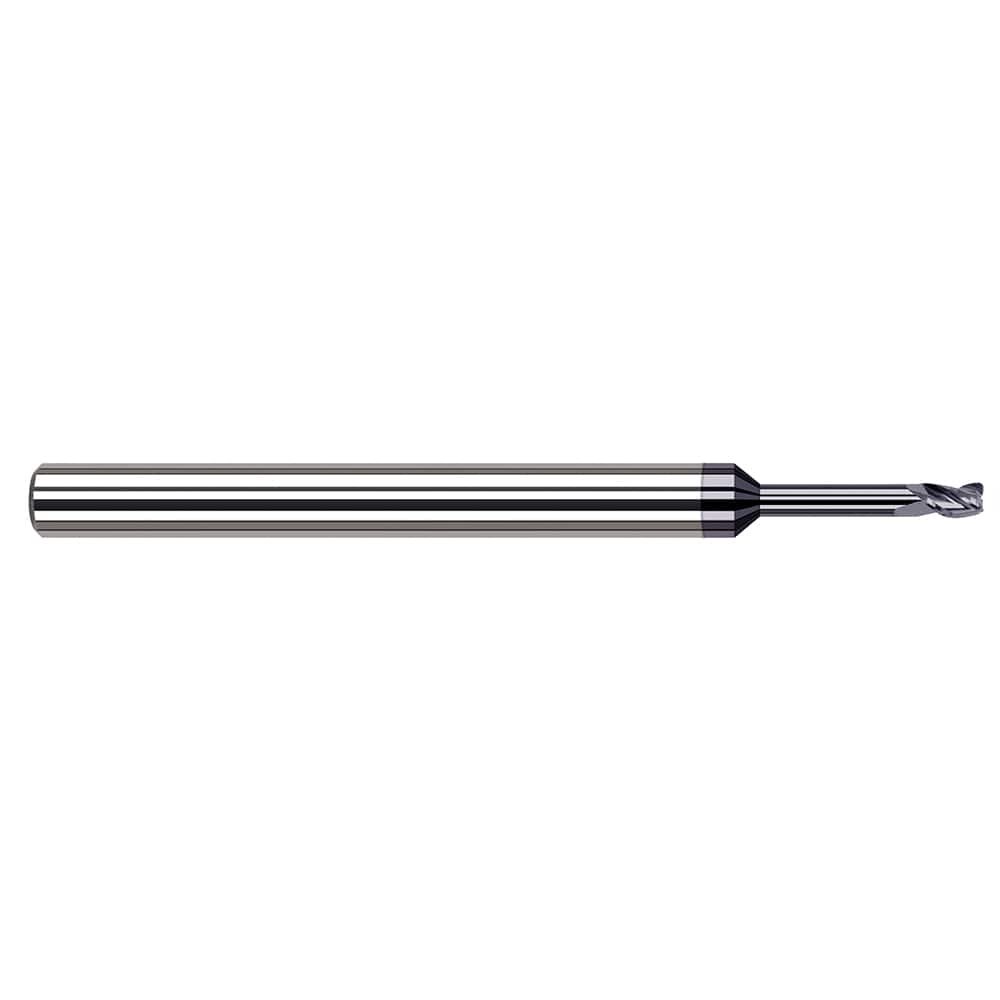

Harvey Tool - 3/16" Diam 4 Flute Solid Carbide 1/64" Corner Radius End Mill
Item #: 16728396
Brand: Harvey Tool
Model #: 795812-C6
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN Nano |
| Length of Cut (Decimal Inch) | 0.2850 |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 3 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 34 |
| Variable Index | No |
| Variable Helix | Yes |
| Reach Length (Inch) | 1-5/32 |
| Reach Length (Decimal Inch) | 1.1560 |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Variable Helix End Mills for High Temp Alloys - Corner Radius - Long Reach, Stub Flute |
